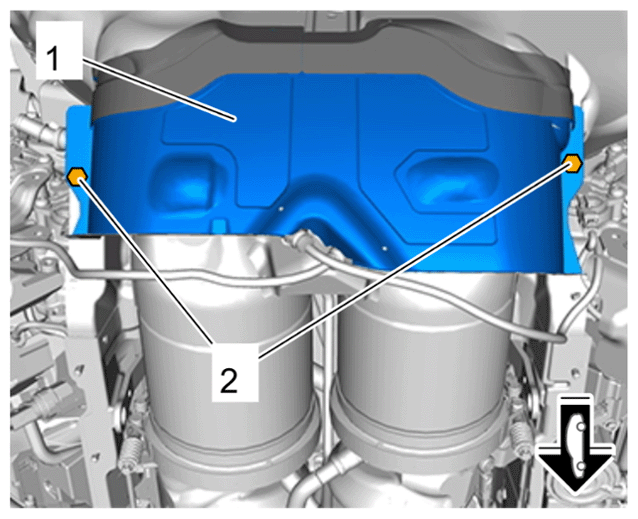

Installing Upper Centre Catalytic Converter Heat Shield
WARNING: This page is about a different variant/trim than selected.
NOTE:
Components not fitted when engine is running or during test drive
- Risk of damage to components due to reduced cooling performance
→ Before starting the engine, make sure that all air-supply components are completely fitted.
→ Only start the engine when the heat shields and design cover are fitted.
→ Only test-drive the vehicle when all underbody panelling, heat shields and the design cover are fitted.
NOTE:
Heat shields not fitted correctly
- Risk of damage to components due to over-heating
→ Check that the heat shields are screwed on fully.
→ Check that the heat shields overlap fully and without gaps.
→ Do not put pressure (body weight, tools) on heat shields.
→ Store removed components in a safe place.
→ Replace damaged or deformed heat shields and safety clips.
