Removing Exhaust Manifold

1. Unscrew nuts -1 to 8-  on the exhaust manifold in reverse order to the tightening sequence.

   Replace nuts!

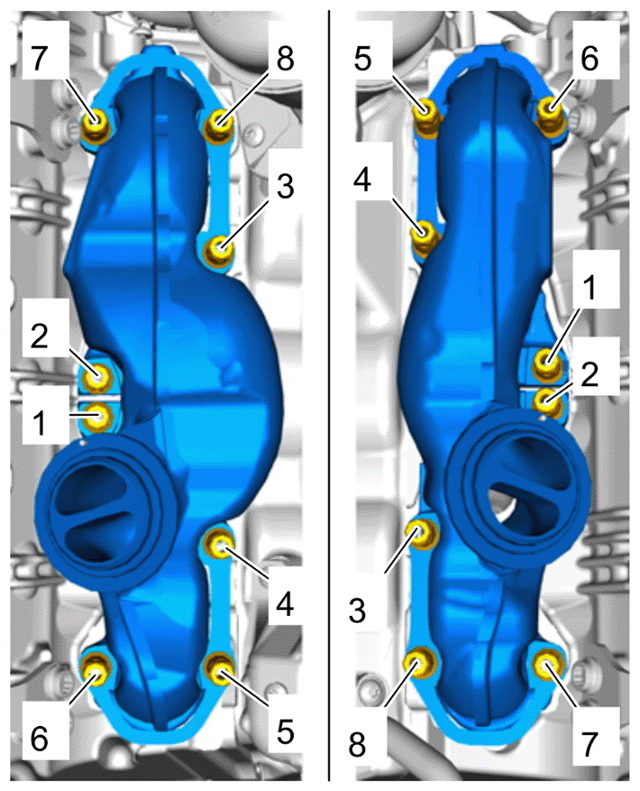

   Fig 1: Exhaust Manifold Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tightening sequence for exhaust manifold

   1-8  Tightening sequence for exhaust manifold screws

2. Remove exhaust manifold.

   Replace seal on turbocharger flange!

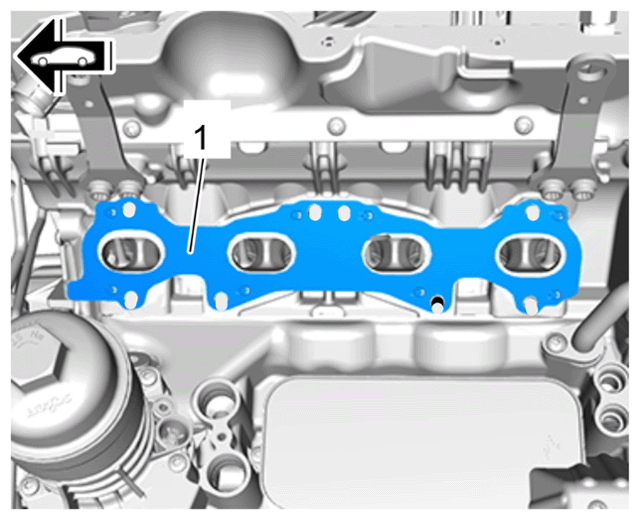

3. Remove and replace metal seal -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Metal seal between exhaust manifold and cylinder head
