Install Three-Point Belt, Rear
- Triggering of seat-belt pretensioner unit
→ Observe safety regulations for handling seat-belt pretensioner units.
> 6X00IN HANDLING AND REPLACING AIRBAG AND SEAT-BELT PRETENSIONER UNITS
→ Observe disposal regulations for seat-belt pretensioner units.
> 6X00IN DISPOSAL OF AIRBAG AND SEAT-BELT PRETENSIONER UNITS
→ After disconnecting the battery, wait 1 minute before disconnecting the seat-belt pretensioner unit.
→ Remove ignition key and disconnect the battery. Route or insulate the ground strap so that all contact with a ground carrier is avoided.
> 2706IN00 Work instructions after disconnecting the battery
→ If removed for an extended period, the seat-belt pretensioner unit must be stored in a safe place.
→ Transport the seat-belt pretensioner unit in such a way that the seat belt can retract safely if it is actuated.
Information
Always replace screws on the three-point seat belt. Micro-self-locking screws must not be adjusted or loosened and then screwed on again.

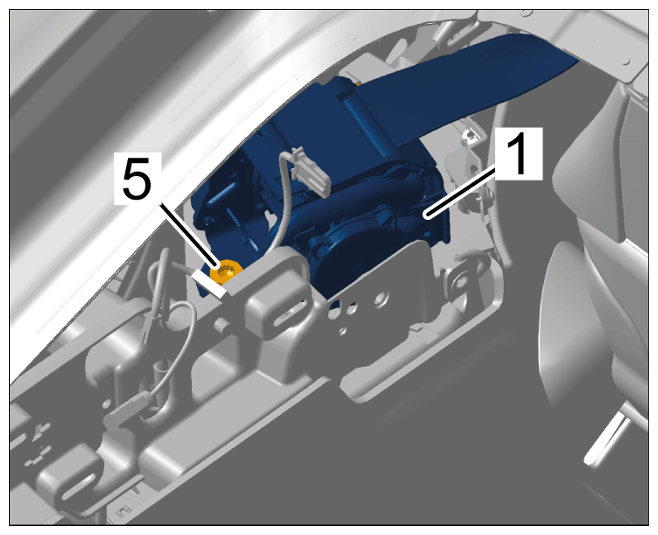

- Fit belt reel -1-
and screw in and tighten screw -5-
> Tightening torque 50 Nm (36.9 ftlb.)
Belt reel
Information
Route electric lines outside of the belt roll-up area.

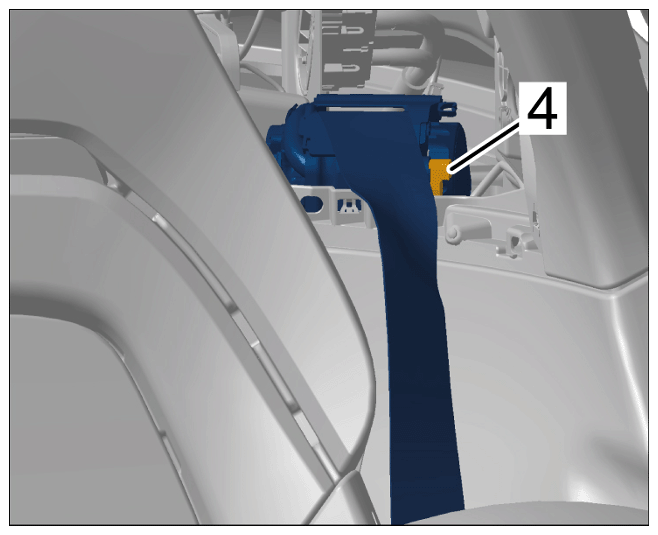

- Connect and lock electric plug connection -4-
E-box.
Electric plug connection

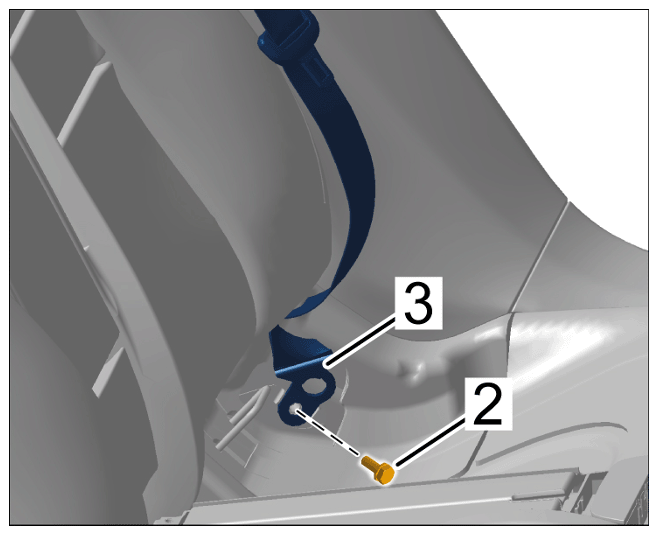

- Guide seat belt mount -3- through the belt guide trim at the D-pillar and screw in and tighten screw -2- > Tightening torque 50 Nm (36.9 ftlb.)
Seat belt mount
