Removing Front Roof Console

WARNING: This page is about a different variant/trim than selected.
  1. Switch off ignition and move remote control (hand-held transmitter) at least 2 metres away from the vehicle.

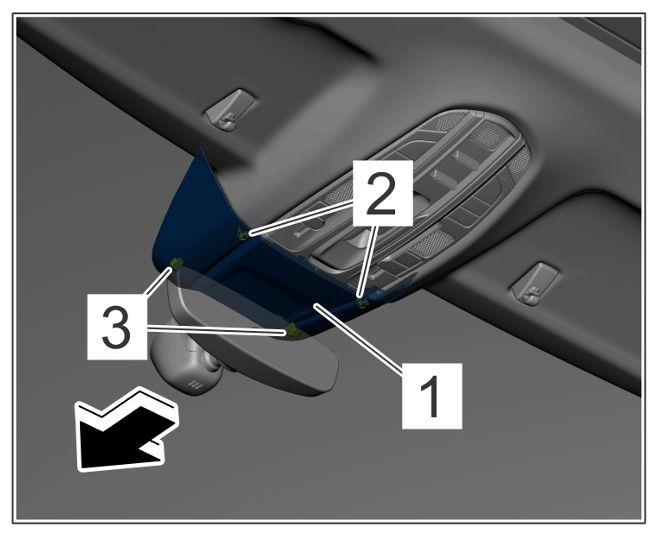

  2. Unclip cover on camera -1-  by pulling it forward -Arrow-  (-2-  ), slide it out of the guide lugs -3-  and remove it.
    G15874400Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover on camera

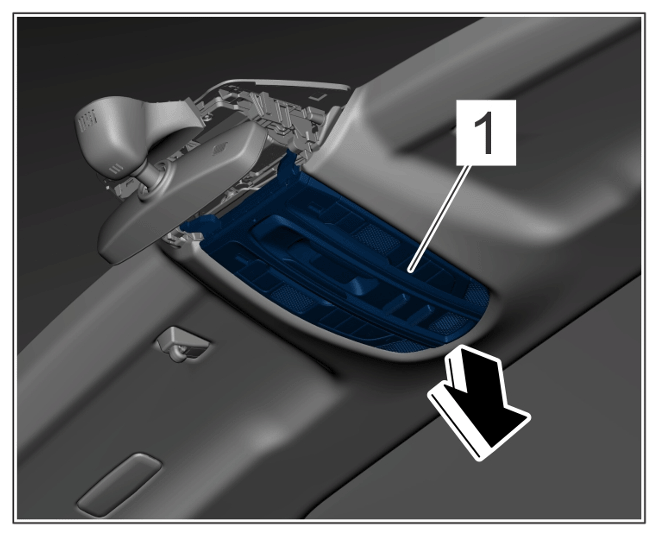

  3. Unclip front roof console -1-  by pulling it back. -Arrow-
    G15874401Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front roof console

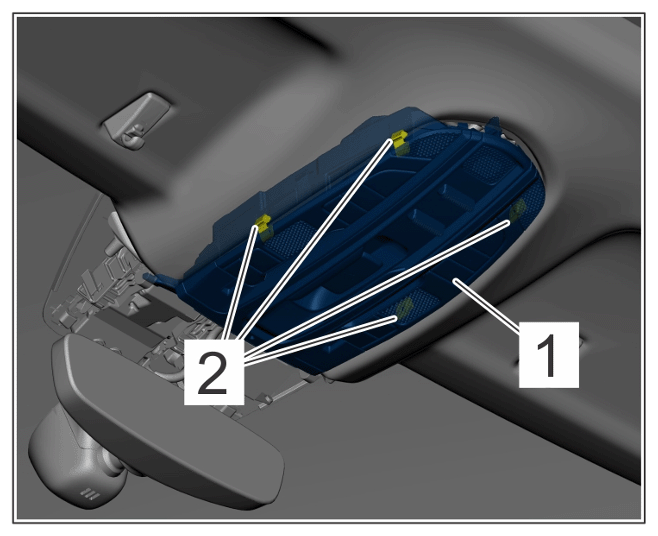

  4. Unclip front roof console -1-  at the locking lugs -2-  on the sides.
    G15874402Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Locking lugs

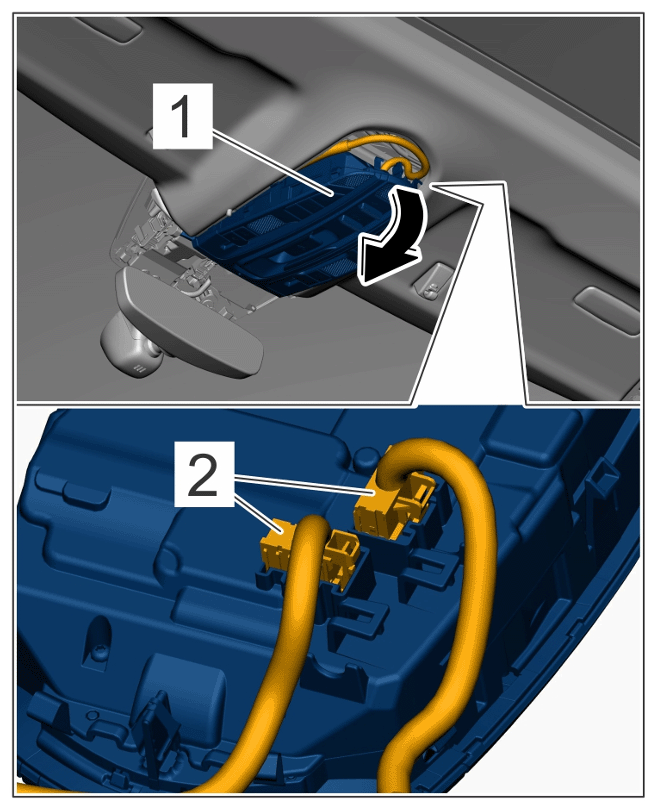

  5. Swivel front roof console -1-  down and release and disconnect electric plug connections -2-  .
    G15874403Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  6. Remove the front roof console.
