Removing Lower Part Of B-Pillar Trim Panel
WARNING: This page is about a different variant/trim than selected.
Information
To reduce the forces during removal and thereby the risk of damage, a suitable tool must be used as a support during removal at accessible connection points.

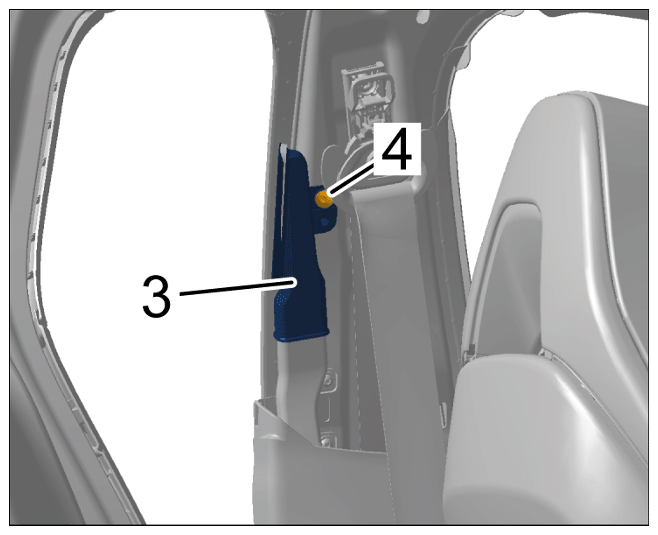

- Unscrew and remove screw -4-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unscrewing screw
- Pull upper ventilation duct -3-
off lower ventilation duct.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pulling off ventilation duct

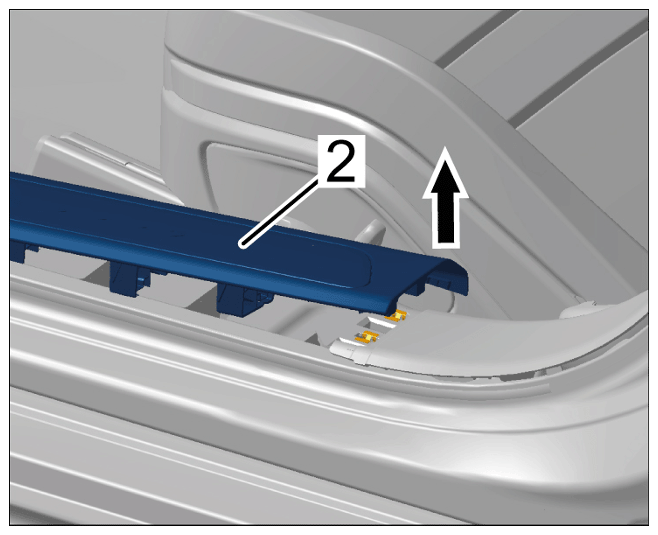

- Unclip front part of door entry guard -2-
by pulling it upwards -arrow-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unclipping door entry guard

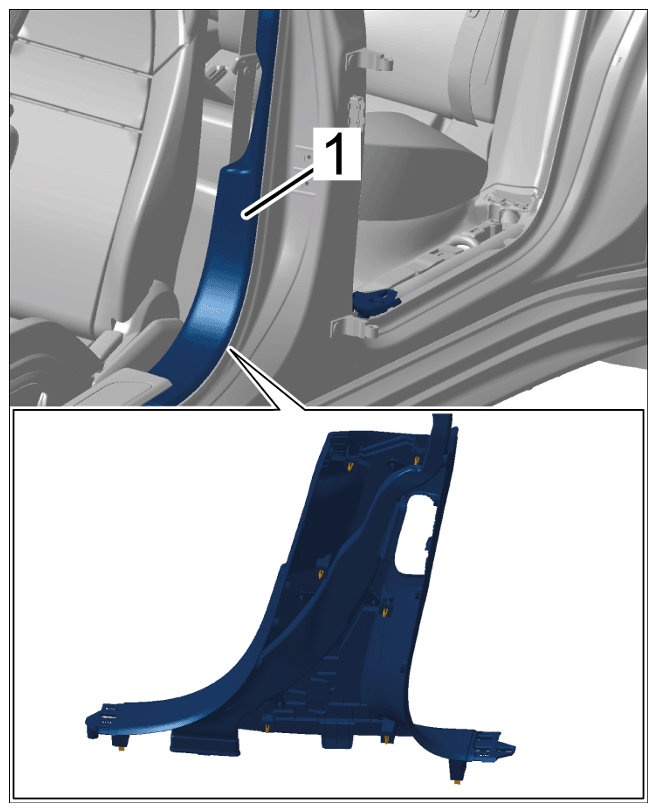

- Remove lower part of B-pillar trim panel -1-
.
- 4.1 Unclip lower part of B-pillar trim panel -1-
.
- 4.2 Swivel out lower part of B-pillar trim panel -1-
and remove it by pulling it downwards.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unclipping lower part of B-pillar trim panel
