Removing Trim For Front Door Panel
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

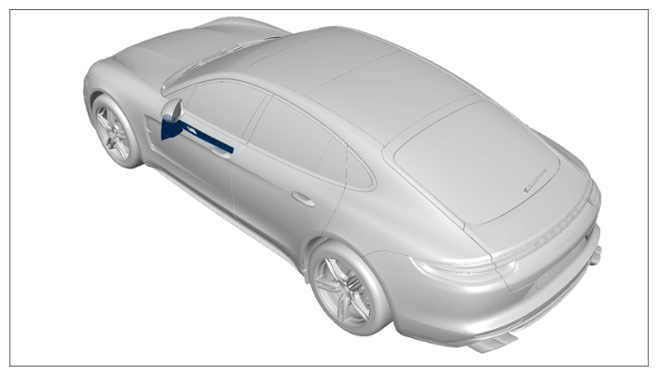

Installation position of front door panel trim
- Remove rear trim -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

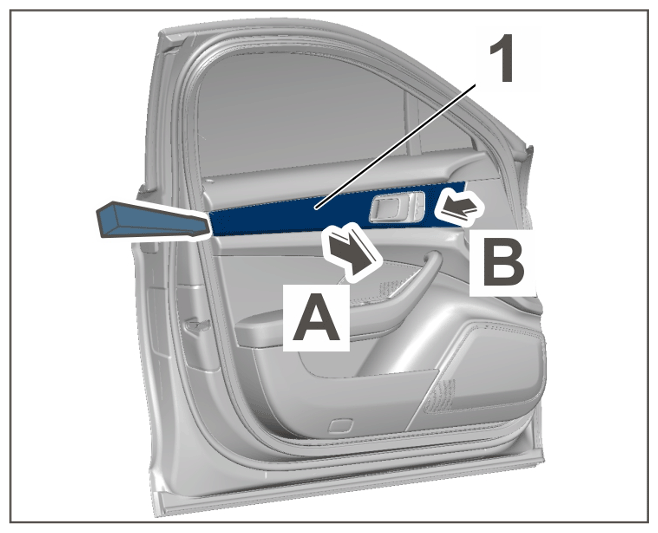

Removing rear trim
- 1.1 Unclip rear trim -1-
from back to front using a plastic wedge -arrow A-
.
- 1.2 Remove rear trim -1-
by pulling it to the rear -arrow B-
.
- Unclip front trim -1-
using a plastic wedge -arrow-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

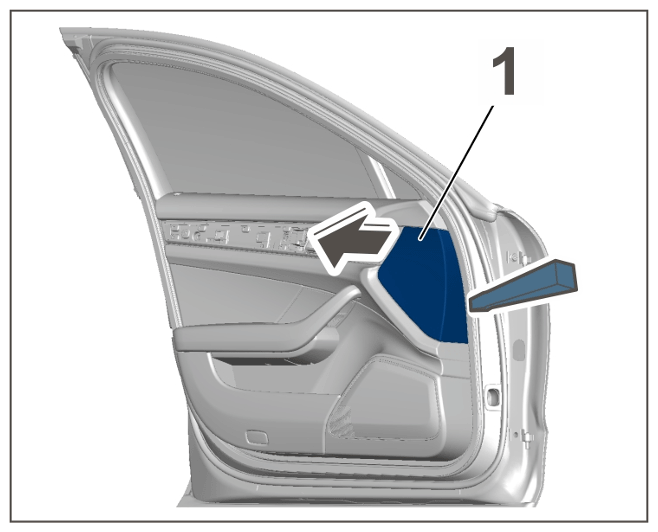

Unclipping front trim
