Removing (Lower) Dashboard Moulding On Passenger's Side

WARNING: This page is about a different variant/trim than selected.
  1. Unscrew screws -2-  , unclip trim panel -3-  and carefully press it towards the steering wheel until (lower) dashboard moulding on passenger's side is accessible.

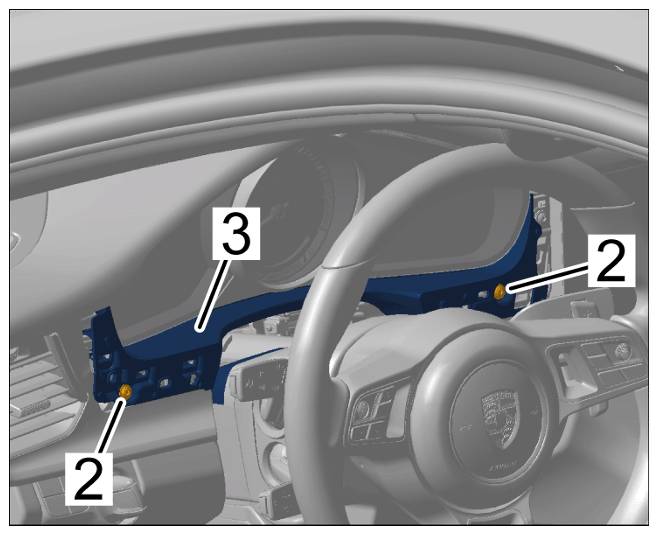

    G15874329Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim panel

  2. Unscrew screws -4-  .

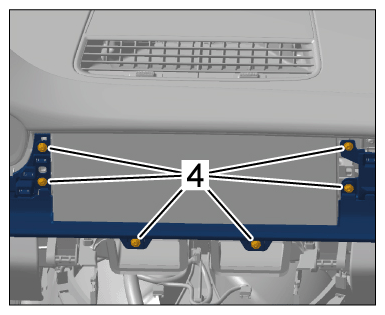

    G15874330Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  3. Unscrew screws -5-  and unclip (lower) dashboard moulding on passenger's side -1-  .

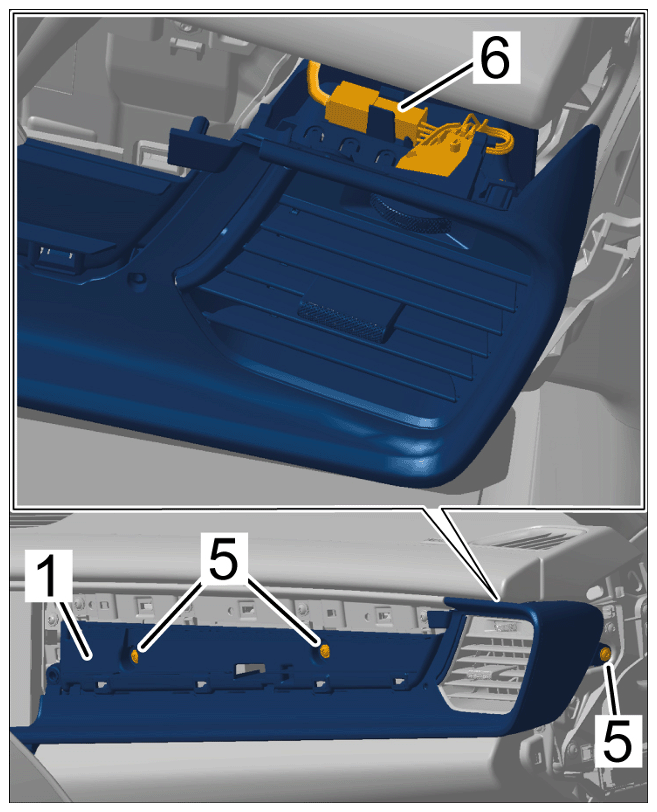

    G15874331Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  4. Release and disconnect electric plug connection for air vent -6-  and remove (lower) dashboard moulding on passenger's side -1-  .
    G15874332Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Dashboard moulding on passenger's side (lower)
