Chain Housing Cover

WARNING: This page is about a different variant/trim than selected.

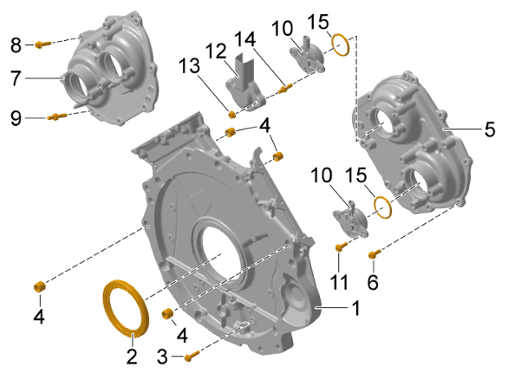

Fig 1: Lower Chain Housing Cover Components Location With Torque Specification

G15823375

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower chain housing cover

1	Lower chain housing cover
2	Sealing ring/replace > Press-in depth 0 mm + 0 mm - 0.2 mm
3	Screw, M6 x 25/replace > Initial tightening 3 Nm (2 ftlb.) > Final tightening + 90°
4	Dowel sleeve
5	Chain housing cover on cylinder bank 1
6	Screw, M6 x 22 > Tightening torque 9 Nm (6.5 ftlb.)
7	Chain housing cover on cylinder bank 2
8	Screw, M6 x 22 > Tightening torque 9 Nm (6.5 ftlb.)
9	Screw, M6 x 22 > Tightening torque 9 Nm (6.5 ftlb.)
10	Solenoid valve for camshaft control
11	Screw, M6 x 18 > Tightening torque 9 Nm (6.5 ftlb.)
12	Heat shield on solenoid valve
13	M6 nut > Tightening torque 9 Nm (6.5 ftlb.)
14	Screw, M6 x 22 > Tightening torque 9 Nm (6.5 ftlb.)
15	Sealing ring, replace
