Section 32 (1X - Engine - General 2.9L Turbo Hybrid -- 971 - PANAMERA (971))
>>
WM, 1X00IN Technical Values (V6 Turbo)
>>
Group 10 - Engine - Crankcase, Suspension
>>
Tightening Sequence For Oil Mist Separator
Tightening Sequence For Oil Mist Separator
WARNING:
This page is about a different variant/trim than selected.

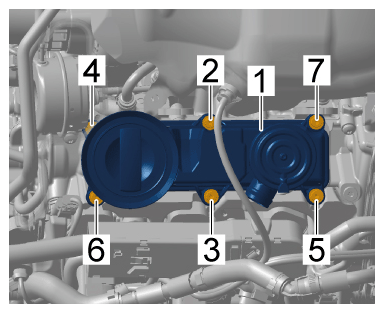

Fig 1: Oil Mist Separator Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tightening sequence for oil mist separator
2-7
Tightening sequence for oil mist separator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
