Engine Mount

WARNING: This page is about a different variant/trim than selected.

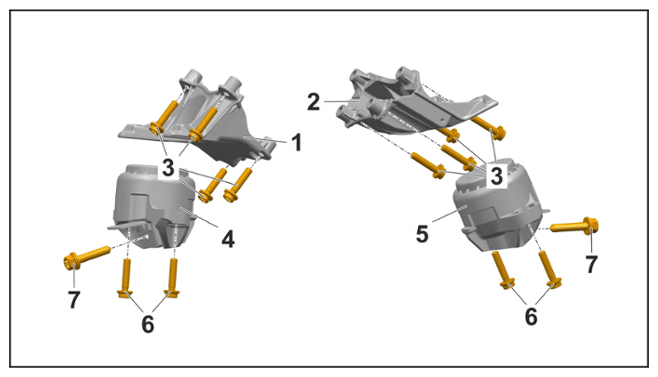

Fig 1: V6 Engine Mount Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

V6 engine mount

1	Right engine carrier
2	Left engine carrier
3	Screws, M10 x 45/replace > Initial tightening 50 Nm (37 ftlb.) > Final tightening + 90°
4	Right engine mount
5	Left engine mount
6	Screw, M10 x 45 > Tightening torque 55 Nm (41 ftlb.)
7	Screw, M12 x 60 x 1.5 > Initial tightening 70 Nm (52 ftlb.) > Final tightening + 90°
