Removing PASM control unit

NOTE: Voltage peaks
  • Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Installation position: → 4301IN POSITION OF AIR SUSPENSION COMPONENTS

  1. Release connector -1-  and disconnect it -arrows-  .
  2. Unscrew nuts -2-  .
  3. Remove PASM control unit -3-  from the holder.

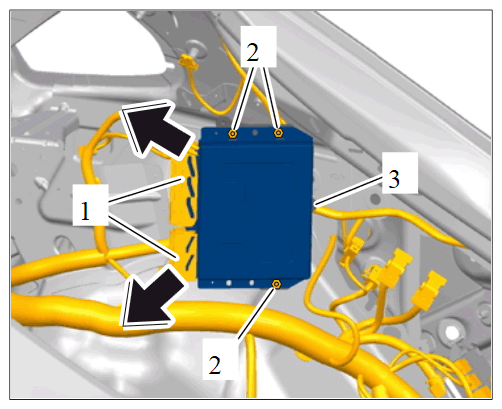

    G11984486

    Mounting for PASM control unit
