Installing Oil/Water Heat EXCHANGER

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The tightening specifications for the basic engine are stored centrally.

> Refer to 1X00IN Technical values in the appropriate service information.

> Refer to 2X00IN Technical values in the appropriate service information.

> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS

Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

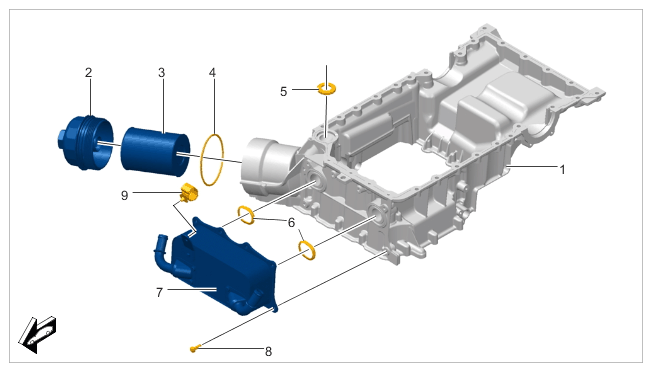

Fig 1: Oil/Water Heat Exchanger, Oil Filter Components Location (2WD)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil/water heat exchanger, oil filter for 2WD

1	Oil guide housing
2	Oil filter cover
3	Oil filter
4	Oil-filter sealing ring
5	Oil duct adapter (cannot be replaced)
6	Heat exchanger seal
7	Oil/water heat exchanger
8	Screw, M6 x 20; self-tapping screws ex-works; metric screws can also be used

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

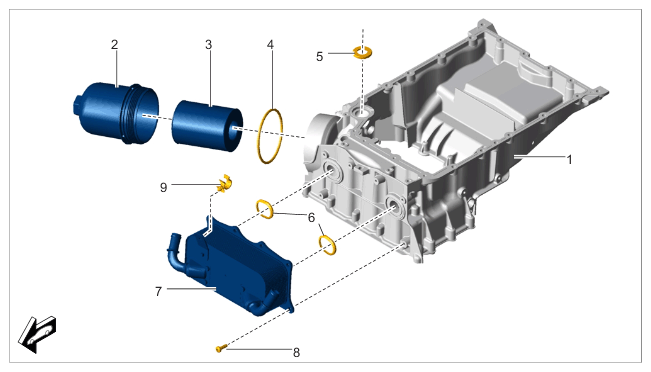

Oil/water heat exchanger, oil filter for 4WD

The oil/coolant heat exchanger is installed in reverse order to removal.

Always replace the O-rings -6- between the oil/coolant heat exchanger and the oil guide housing.

Always use the correct tightening torques

> Refer to 1001TW Tightening torques, tightening sequences, assembly overviews in the appropriate service information.
