Installing Oil-Pressure Sender
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Information
The tightening specifications for the basic engine are stored centrally.
> Refer to 1X00IN Technical values in the appropriate service information.
/
> Refer to 2X00IN Technical values in the appropriate service information.
or
> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS
Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

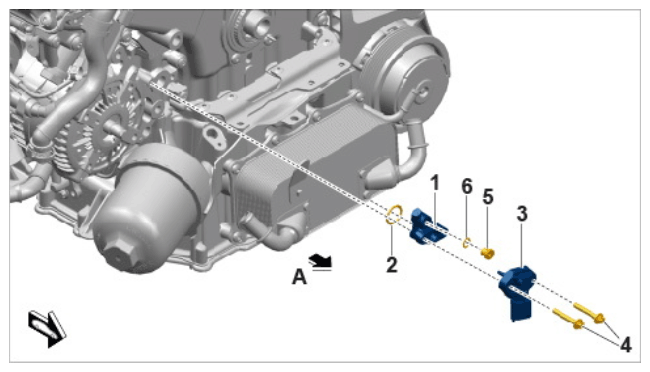

Component overview of oil-pressure sender
Component overview of oil-pressure sender
| 1 | Oil-pressure sensor adapter |
| 2 | dealing ring |
| 3 | Oil pressure sender with temperature sensor |
| 4 | Screw, M6 x 40 |
| 5 | Plug |
| 6 | Sealing ring |
| A | Direction of travel |
- Replace sealing rings for adapter and oil-pressure sender.
- Slide oil-pressure sender -3- into the adapter -1- .
- Fit fastening screws -4- .
- Plug in connector for oil-pressure sender.
