Draining And Filling Engine Oil

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

NOTIFICATION

Incorrect oil level

Risk of damage to engine or catalytic converter
→ Check the oil level regularly.

→ The oil level must not fall below the Minimum marking or rise above the Maximum marking.

→ Only use engine oil approved by Porsche.

WARNING: Hot fluid

Danger of scalding
→ Avoid contact with hot fluid.

→ Wear personal protective gear.

Information

The tightening specifications for the basic engine are stored centrally.

> Refer to 1X00IN Technical values in the appropriate service information.

> Refer to 2X00IN Technical values in the appropriate service information.

> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS

Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

Loosen the oil drain plug -1- and collect engine oil in a container (allow to drain for approx. 5 minutes). Dispose of used oil in accordance with legal requirements.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

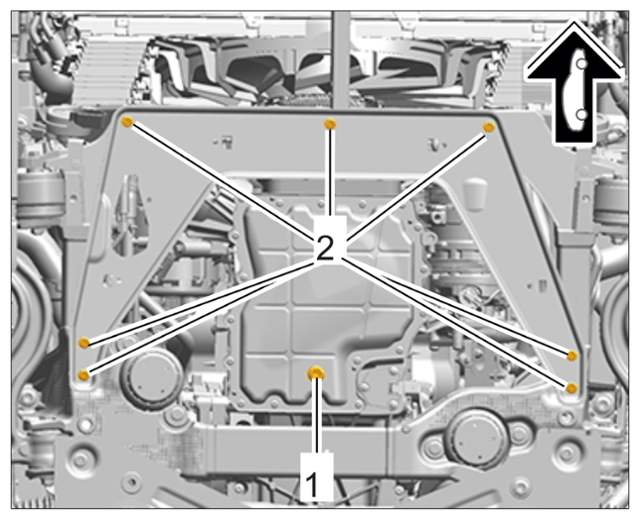

Oil drain plug and stiffening plate
Replace sealing ring on oil drain plug and fit oil drain plug.
Tightening torque: > Tightening torque 30 Nm (22 ftlb.)
Fill in engine oil of the stipulated viscosity and quality. Oil filling capacity without oil filter, V8 > Filling capacity 8.5 Liter ; oil filling capacity with oil filter, V8 > Filling capacity 9.0 Liter ; oil filling capacity without oil filter, V6 > Filling capacity 7.7 Liter ; oil filling capacity with oil filter, V6 > Filling capacity 8.5 Liter
