Removing Rear Wheel Housing

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

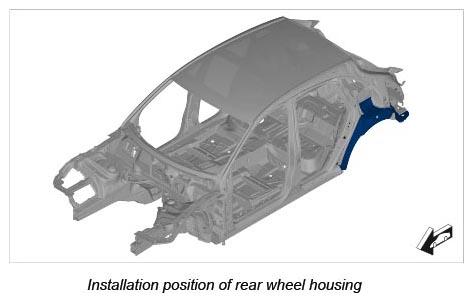

Fig 1: Rear Wheel Housing Component Location (Outer)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure to leave an overlap of approx 20 mm on the wheel housing.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Mark and make the required cut. → Distance: 20 mm

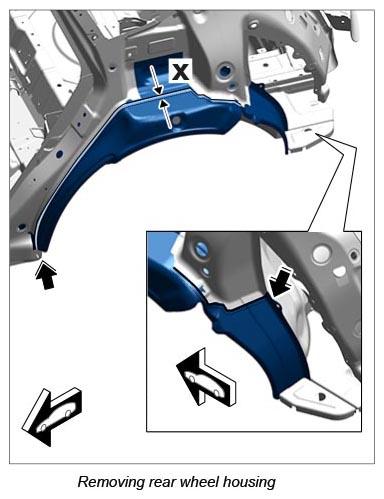

1.1. Remove rear wheel housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

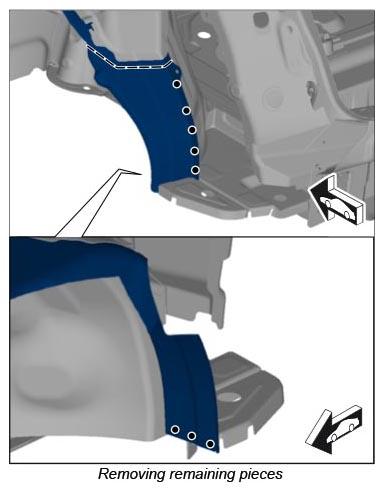

Remove remaining pieces of rear wheel housing.

2.1. Drill out spotwelds using spotweld drill; see Gr. 2.4; Workshop Equipment Manual Nr.129 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
