Preparing (Inner) Rear Wheel Housing For Installation: Notes

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

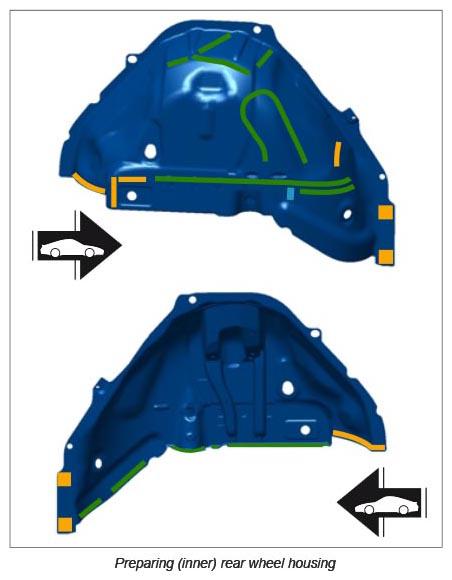

  1. Prepare (inner) rear wheel housing for bonding and welding.
    G12893446Courtesy of PORSCHE CARS NORTH AMERICA, INC.

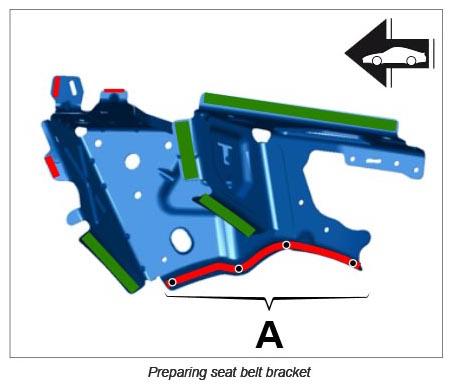

  2. Prepare seat belt bracket for bonding and welding.
    1. 2.1. Drill holes for plug-welding in the marked areas -A-  using a drill bit with a diameter of → Diameter: 8.0 mm.
      G12893447Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Green Resistance spot-welding + bonding
    Blue Bonding
    Red Plug-welding/apply a full weld using inert gas without bonding
    Orange Resistance spot-welding
