Preparing Side Section Lower Part For Installation

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

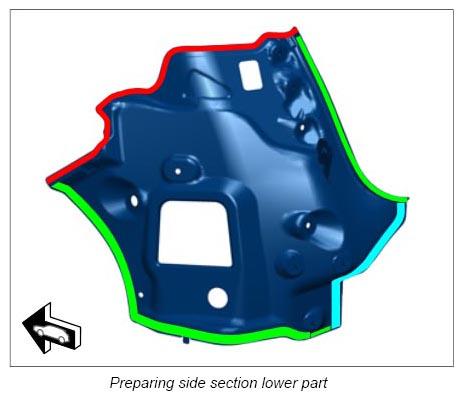

  1. Prepare the marked areas for welding and bonding.
    G12893407Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Green Resistance spot-welding
    Blue Bonding
    Red Plug-welding/apply a full weld using inert gas without bonding
