INSTALLING SIDE SECTION LOWER PARt

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

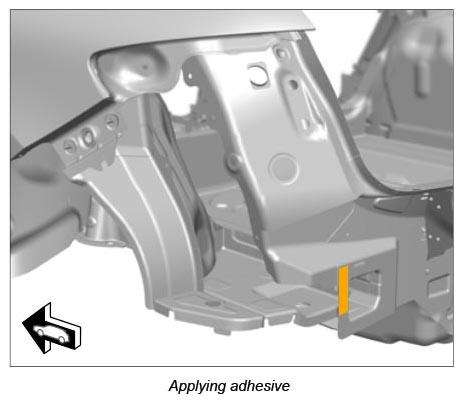

Apply adhesive. → Application depth: 3.0 mm
Working with body structural adhesive → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

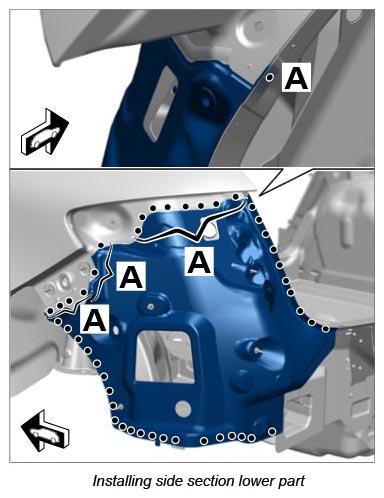

Resistance spot-weld the side section lower part.

2.1. Plug-weld area -A- using inert gas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
