Preparing Rear Side Section For Installation
WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Fit in rear side section.

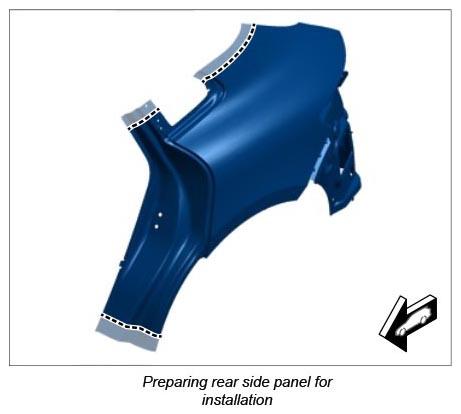

- 1.1. Cut rear side section at the transitions to the body leaving an overlap of 30 mm.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

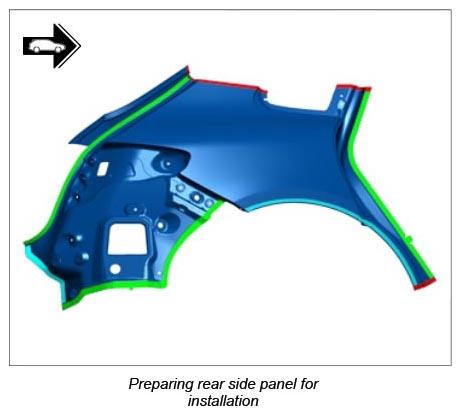

- Prepare connection areas for bonding and welding.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| Red |
Plug-welding/apply a full weld using inert gas without bonding |
| Green |
Resistance spot-welding |
| Blue |
Bonding |
