Removing Rear Side Member

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

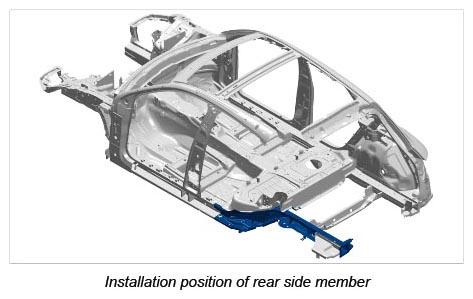

Fig 1: Rear Side Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

Drill out spotwelds using spotweld drill; see Gr. 2.4; Workshop Equipment Manual Nr.129 .

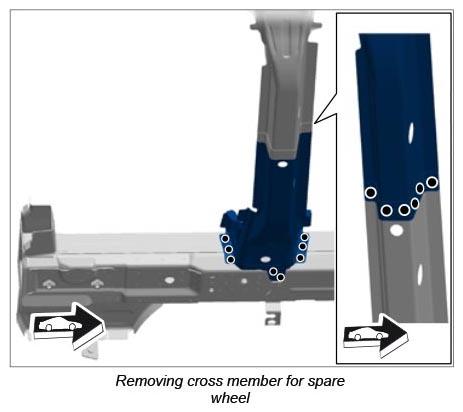

1.1. Remove cross member for spare wheel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

CAUTION: Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

Drill out spotwelds using spotweld drill; see Gr. 2.4; Workshop Equipment Manual Nr.129 .

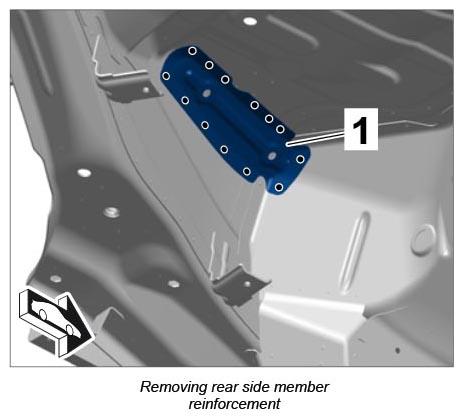

2.1. Remove rear side member reinforcement -1 - .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

Drill out spotwelds using spotweld drill; see Gr. 2.4; Workshop Equipment Manual Nr.129 .

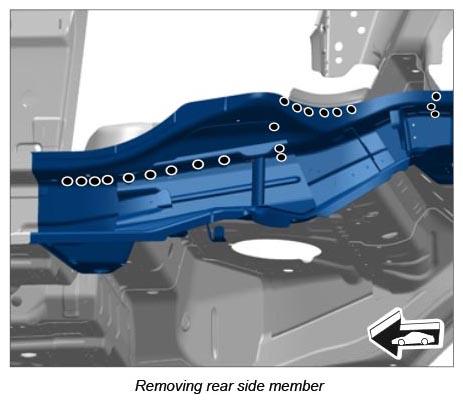

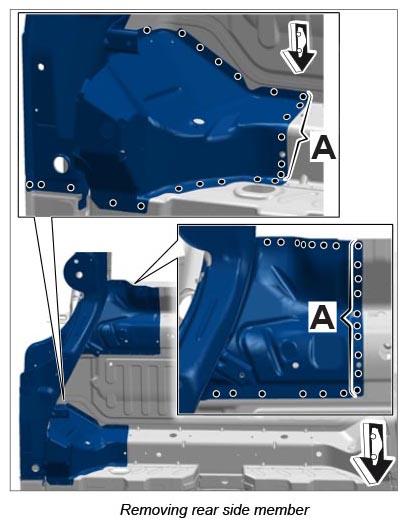

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

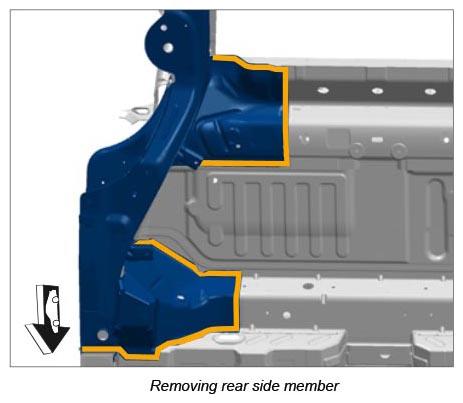

Heat the marked bonding areas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

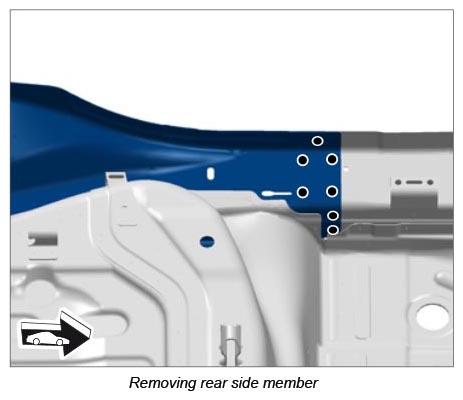

Remove rear side member.
