Preparing Rear Side Member (Section) For Installation

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit in rear side member.
    1. 1.1. Cut rear side member at the transitions to the body leaving an overlap of 30 mm.

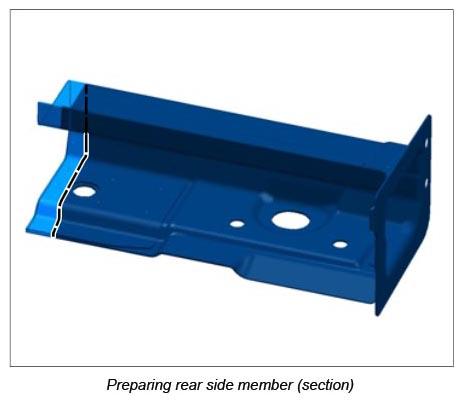

      G12893333Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit in rear side member again.
    1. 2.1. Make cuts through the rear side member (section) and rear side member in the overlap areas.
  3. Prepare connection areas for bonding and welding.

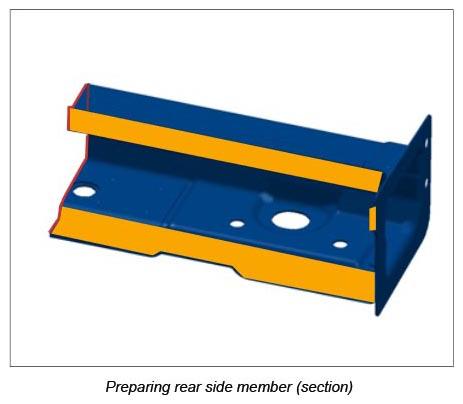

    G12893334Courtesy of PORSCHE CARS NORTH AMERICA, INC.

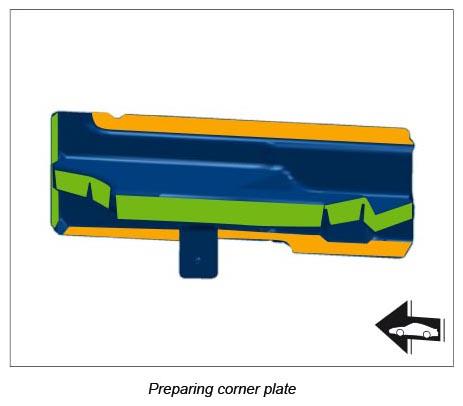

    G12893335Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Resistance spot-weld the closing element.

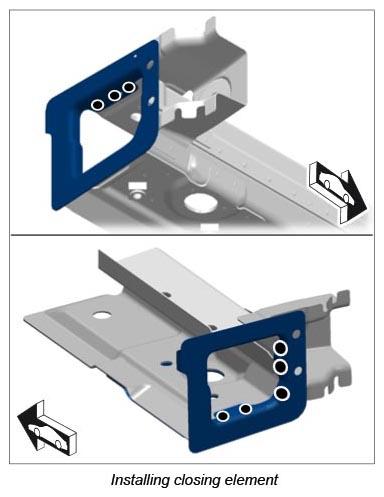

    G12893336Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Red Plug-welding/apply a full weld using inert gas without bonding
    Green Resistance spot-welding
    Yellow Bonding + resistance spot-welding
