Removing Rear-End Well

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

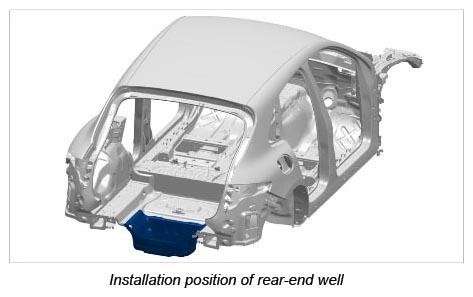

Fig 1: Rear-End Well Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

Drill out spotwelds using spotweld drill; see Gr. 2.4; Workshop Equipment Manual Nr.129 .

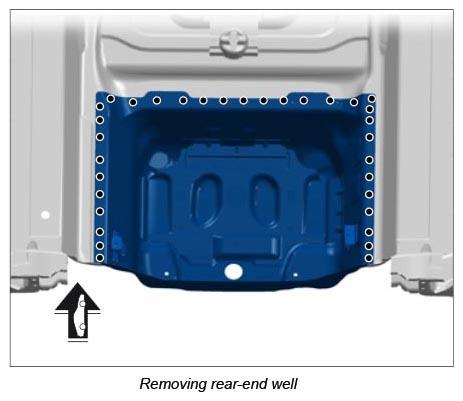

1.1. Remove rear-end well.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
