Preparing Rear-End Well For Installation

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

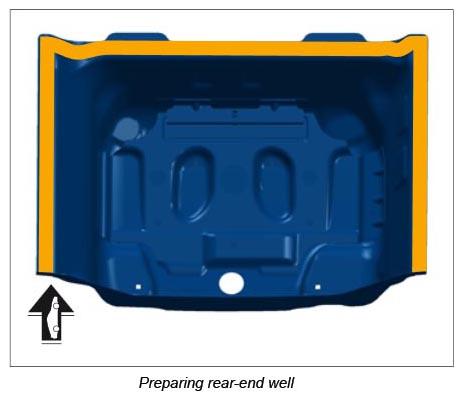

  1. Prepare the marked areas for welding.
    G12893214Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Orange Resistance spot-welding
