Replacing Rear Transverse Lock Support

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

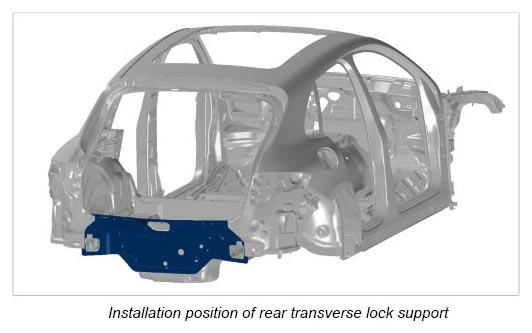

Fig 1: Rear Transverse Lock Support Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

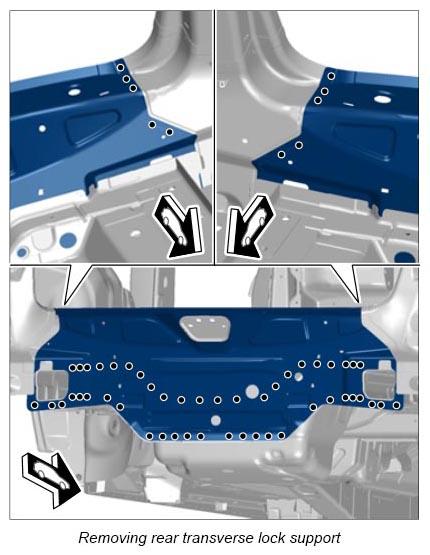

Drill out spotwelds using spotweld drill; see Gr. 2.4; Workshop Equipment Manual Nr.129 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

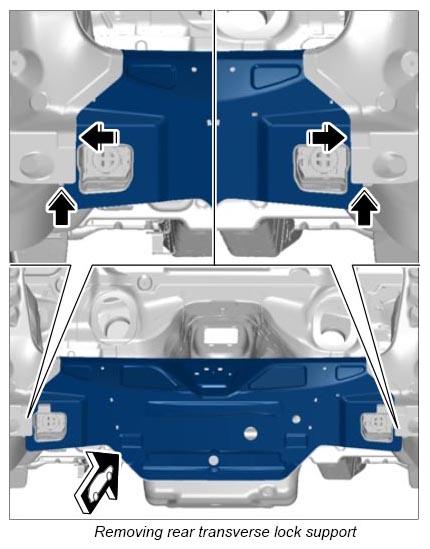

Make a sufficient gap between the corner plates at the left and right and the transverse lock support.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

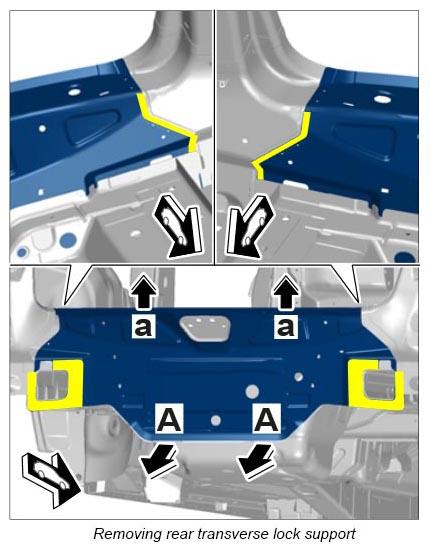

Heat the marked bonding surfaces.

3.1. Pull closing panel to the rear in the lower area -arrows A- and then remove it by pulling it upwards -arrows a- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
