Removing Lower Corner Part (Inside)

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

Drill out spotwelds.

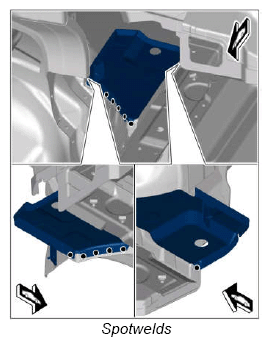

Fig 1: Lower Corner Part Component Location (Inside)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove lower corner part (inside).
