Installing Lower Corner Part (Inside)

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

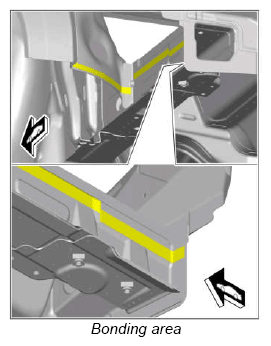

Apply adhesive evenly on the marked area of the body. → Application depth: 0.5 mm
→ 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Apply adhesive evenly in the marked area on the lower corner panel (inner). → Application depth: 0.5 mm
Also apply a bead of adhesive all around the bonding surface. → Application depth: 3 mm

→ 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet in lower corner panel (inner).
→ BLIND RIVETS 999.190.229.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

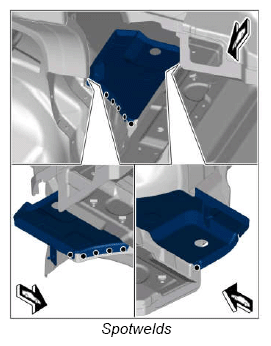

Resistance spot-weld the lower corner panel (inner).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
