Removing Rear Closing Panel

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

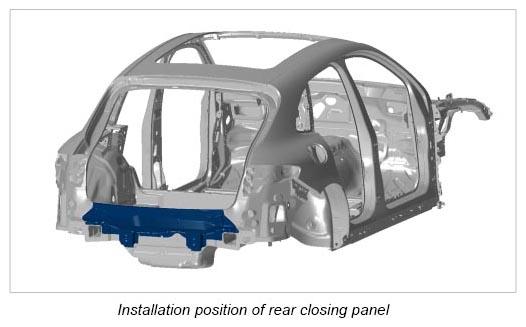

Fig 1: Rear Closing Panel Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

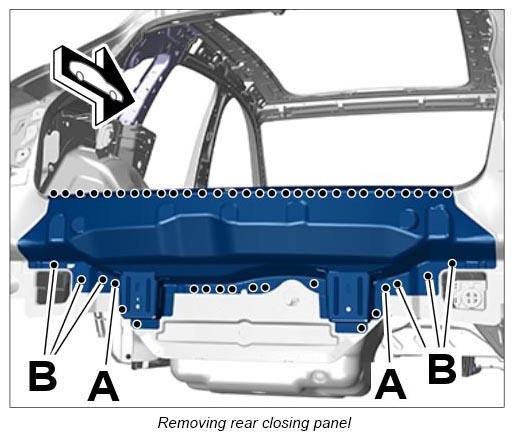

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

Drill out spotwelds using spotweld drill; see Gr. 2.4; Workshop Equipment Manual Nr.129 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

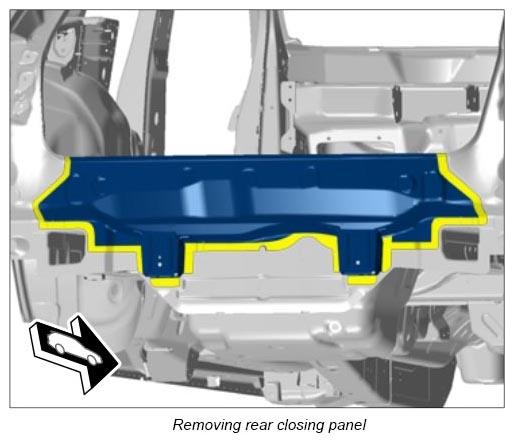

Heat the marked bonding surfaces.

2.1. Removing rear closing panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
