Preparing Connection Areas Of The Body
WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Align the sealing surface and connections of the body.
- De-burr connection points and prepare them for welding.

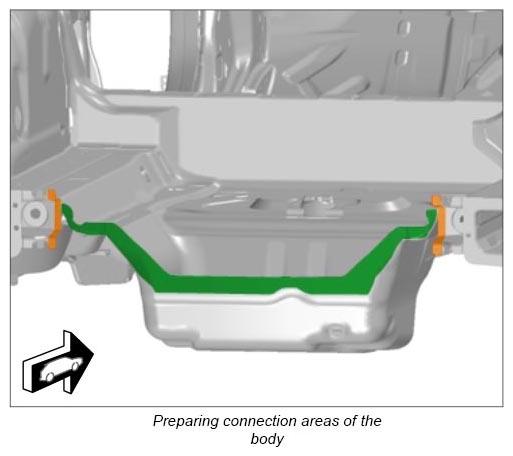

- Prepare the marked areas for welding and bonding.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| Orange |
Bonding + resistance spot-welding |
| Green |
Resistance spot-welding |
