Installing Side Member Reinforcement

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive .
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed .
Do not begin bonding work until all materials and tools necessary for later repair work are available .

Install side member reinforcement and check that it fits perfectly. Check gap dimensions. → WM 5X00IN GAP DIMENSIONS

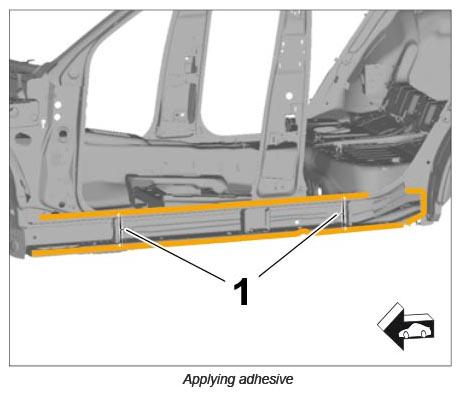

1. 1.1. Apply adhesive to the areas marked in yellow. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE → Application depth: 3.0 mm
Bond in moulded parts -1- .
Apply foam filler. → WM 5X00IN PROCESSING BODY FOAM FILLER . Make sure that all openings and gaps are closed off with the sealing compound.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install side member reinforcement.

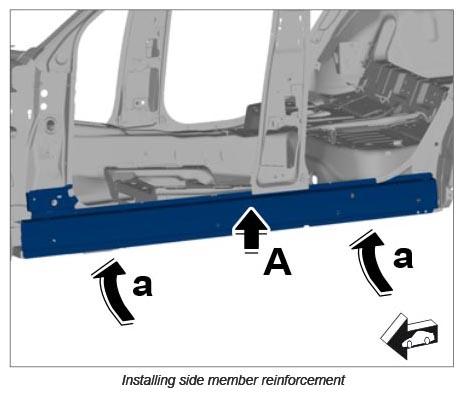

4.1. Guide in side member reinforcement from below -arrows a- and push it under the inner B-pillar -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

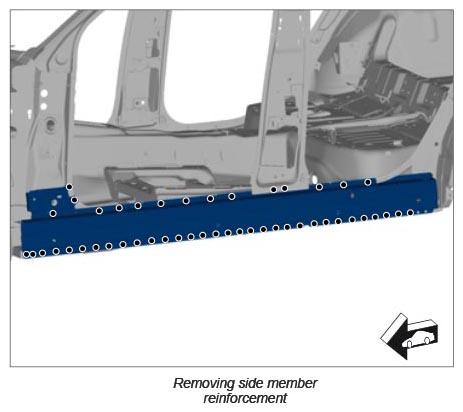

Resistance spot-weld the side member reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
