Removing Rear Cross Member

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

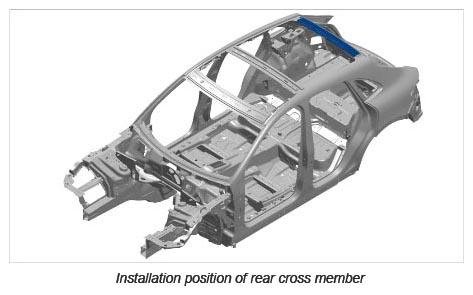

Fig 1: Rear Cross Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

Drill out spotwelds using spotweld drill;

1.1. Heat bonding areas marked in yellow.

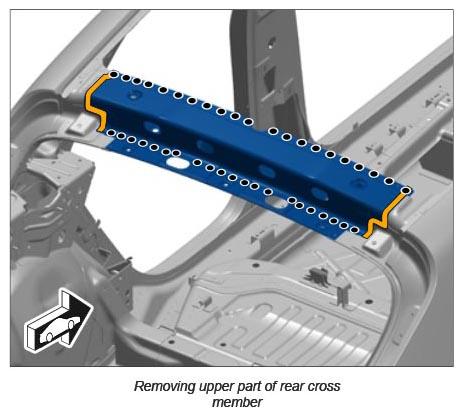

1.2. Remove upper part of rear cross member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

Drill out spotwelds using spotweld drill;

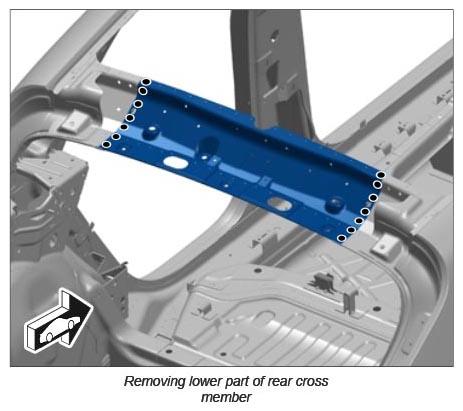

2.1. Remove lower part of cross member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
