Removing Roof Pillar

WARNING: This page is about a different car, the 2017 Porsche Macan, 2016 Porsche Macan, and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

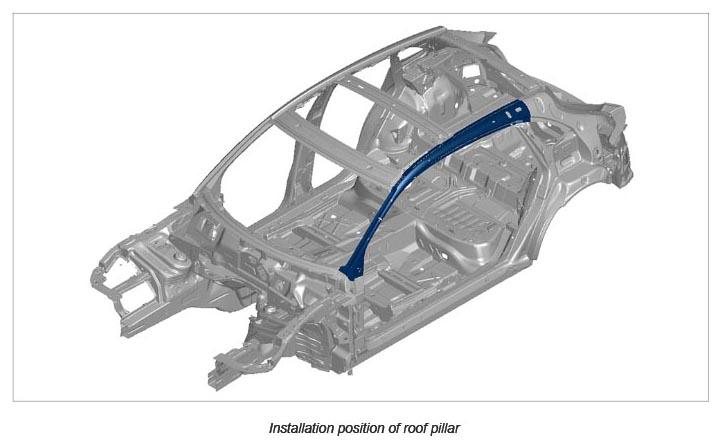

Fig 1: Roof Pillar Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

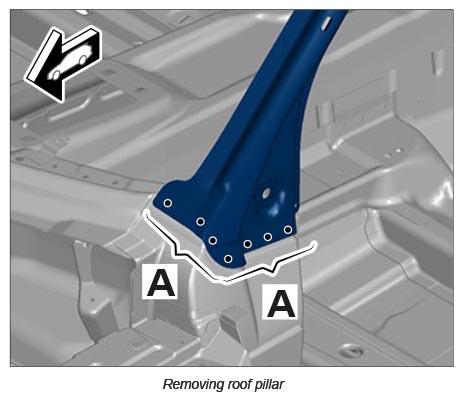

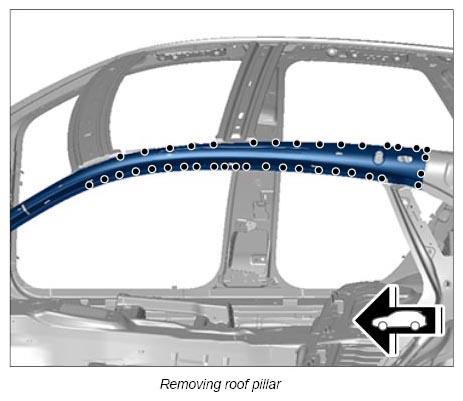

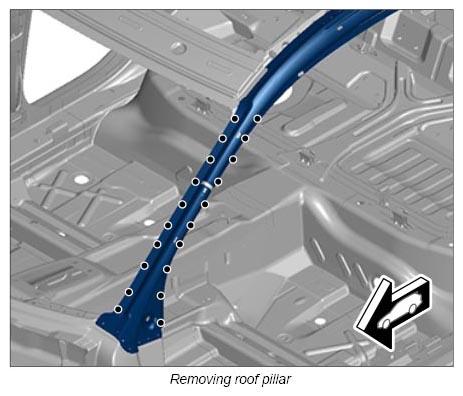

Drill out spotwelds using spotweld drill; .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

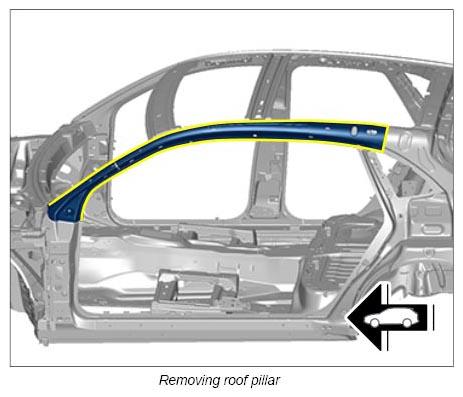

Heat the marked bonding areas.

2.1. Remove roof pillar.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
