Left Turbocharger: Removal

WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Remove the engine undershield.

    Refer to: ENGINE UNDERSHIELD .

  2. Drain the engine oil.

    Refer to: ENGINE OIL DRAINING AND FILLING .

  3. Remove the exhaust.

    Refer to: EXHAUST SYSTEM - VEHICLES WITH: DIESEL EXHAUST FLUID .

  4. Remove the left Exhaust Gas Recirculation (EGR) valve.

    Refer to: LEFT EXHAUST GAS RECIRCULATION VALVE .

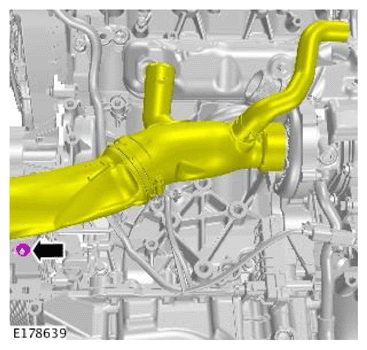

  5. G11710195

    Release the intake air pipe.

  6. CAUTION: Make sure that the area around the component is clean and free of foreign material.

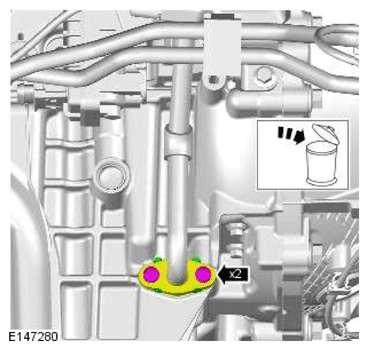

    G11602096
    • Remove the 2 bolts.
    • Remove and discard the gasket.
  7. CAUTION: Make sure that the area around the component is clean and free of foreign material.

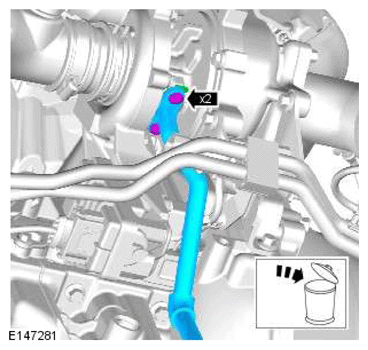

    G11602097
    • Remove the turbocharger oil return pipe.
    • Remove and discard the gasket.

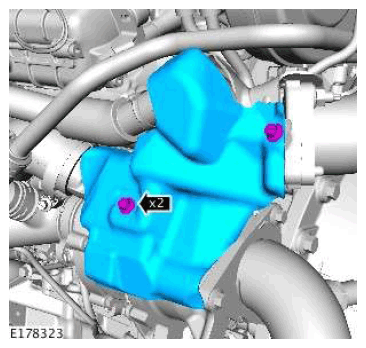

  8. G11607446

    Remove the turbocharger heatshield.

  9. CAUTION: Make sure that the area around the component is clean and free of foreign material.

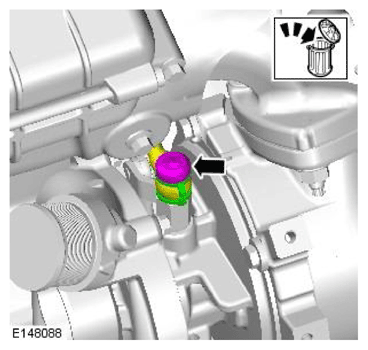

    G11710199
    • Remove and discard the turbocharger oil feed pipe bolt.
    • Remove and discard the washers.

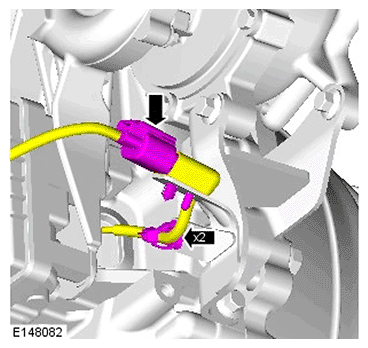

  10. G11695675

    Disconnect the Crankshaft Position Sensor (CKP) electrical connector.

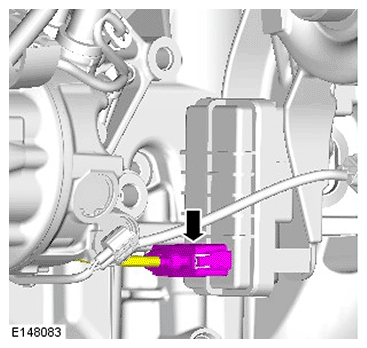

  11. G11695674

    Disconnect the electrical connector from the turbocharger.

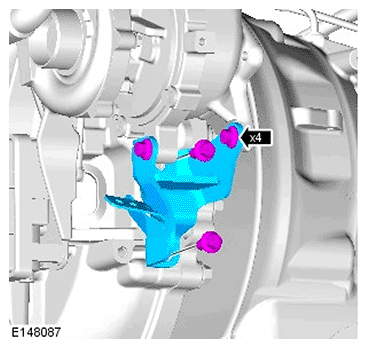

  12. G11695671

    Remove the 4 bolts.

  13. WARNING: Be prepared to collect escaping fluids.
    G11607452

    Release the coolant pipe.

  14. WARNING: Be prepared to collect escaping fluids.
    G11607453
    • Release the coolant pipe.
    • Remove and discard the O-ring seal.

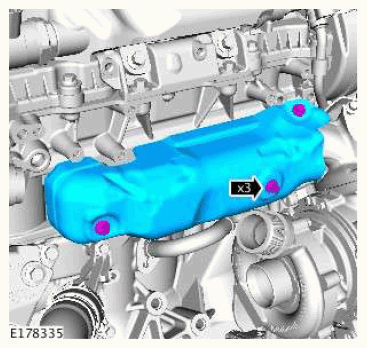

  15. G11607456

    Remove the exhaust manifold heatshield.

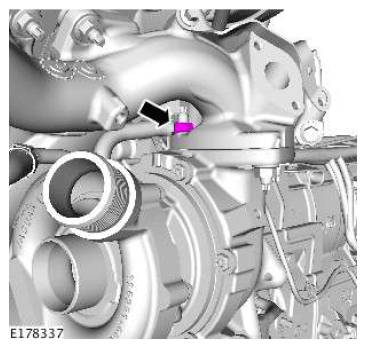

  16. G11607458

    Remove and discard the nut.

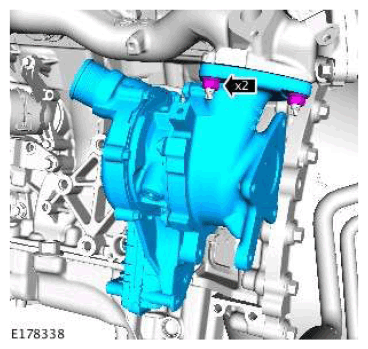

  17. G11607459
    • Remove and discard the nuts.
    • Remove and discard the gasket.
  18. G11607460
    • Remove the turbocharger coolant pipe.
    • Remove and discard the gasket.
