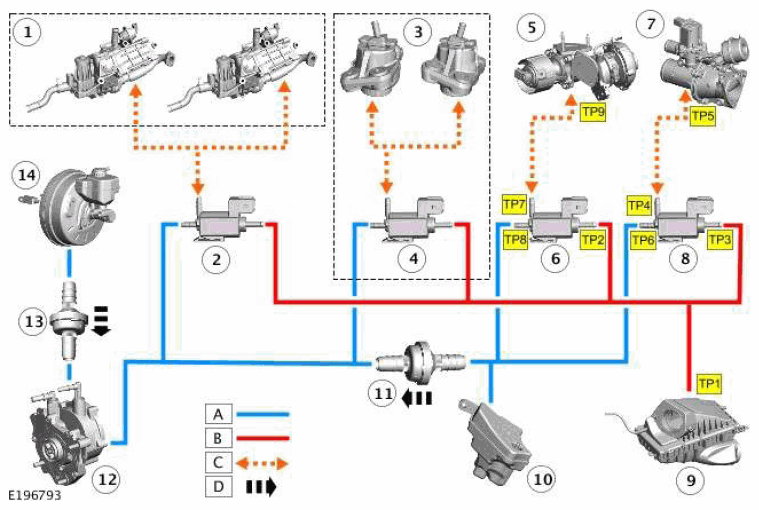

Tdv6 3.0L Diesel Engine - Vacuum System Layout. Twin Turbo Variants Only
WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | High pressure EGR(s) (1 or 2 may be fitted) |
| 2 | EGR Cooler bypass valve solenoid |
| 3 | Active engine mounts (x2) (where fitted) |
| 4 | Active engine mount solenoid (where fitted) |
| 5 | Turbine intake shut-off valve |
| 6 | Turbine intake shut-off valve solenoid |
| 7 | Charge air shut-off valve |
| 8 | Charge air shut-off valve solenoid |
| 9 | Air filter housing |
| 10 | Vacuum reservoir |
| 11 | Non return valve |
| 12 | Vacuum pump |
| 13 | Non return valve |
| 14 | Brake servo |
| A | Vacuum supply hose |
| B | Vacuum vent hose |
| C | Actuator vacuum supply and vent hose |
| D | Direction of flow |
| TP | Pin point test reference - Test Point |
