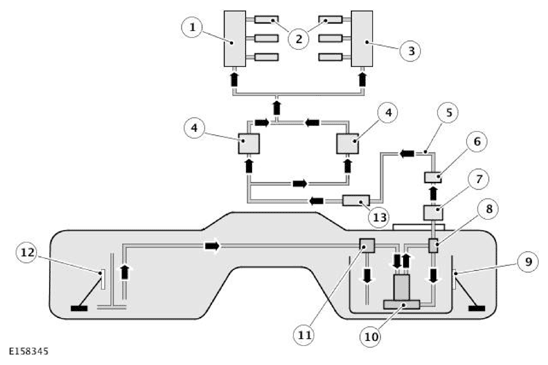

Fuel System Flow Schematic
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2015 Land Rover Range Rover, and 2014 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Left side High Pressure (HP) fuel rail |
| 2 | Fuel injector (6 Off) |
| 3 | Right side HP fuel rail |
| 4 | HP fuel pump (2 Off) |
| 5 | Fuel delivery line |
| 6 | Low Pressure (LP) fuel sensor |
| 7 | Fuel filter |
| 8 | Pressure Relief Valve (PRV) |
| 9 | Active side fuel level sensor |
| 10 | LP fuel pump |
| 11 | Jet pump |
| 12 | Passive side fuel level sensor |
| 13 | Flex fuel sensor (NAS markets only) |
