Installing Microswitch For Rear Side Section Flap

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press rear side section flap at the left -1-  to its center position.

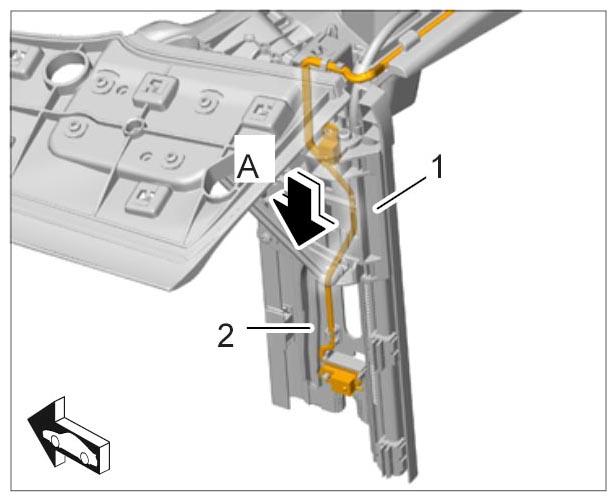

    Fig 1: Pressing Rear Side Section Flap
    G09994537Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Guide lower microswitch (long connecting line) in between the flap -1-  and flap guide -2-  (-A-  ).

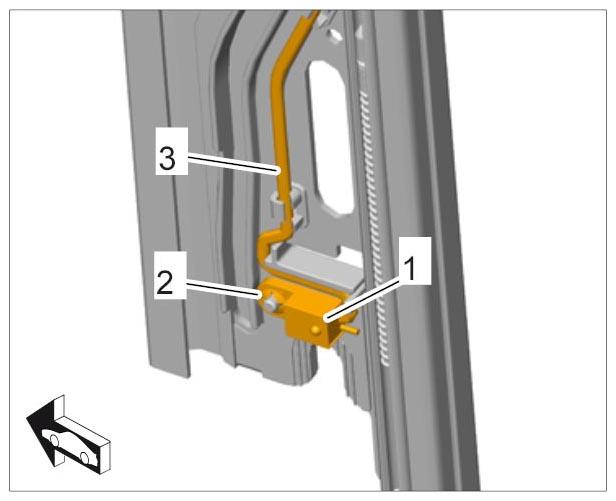

  3. Position lower microswitch -1-  on the guide pin and fit a new spring clamp -2-  using a suitable tool.
    Fig 2: Installing Lower Microswitch
    G09994538Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 3.1. Press rear side section flap up if necessary.
  4. Clip wire harness -3-  into the bracket. Check that the wires are routed correctly.
  5. Press rear side section flap at the left to its lower end position.
  6. Clip wire harness into the brackets -3-  . Check that the wires are routed correctly.

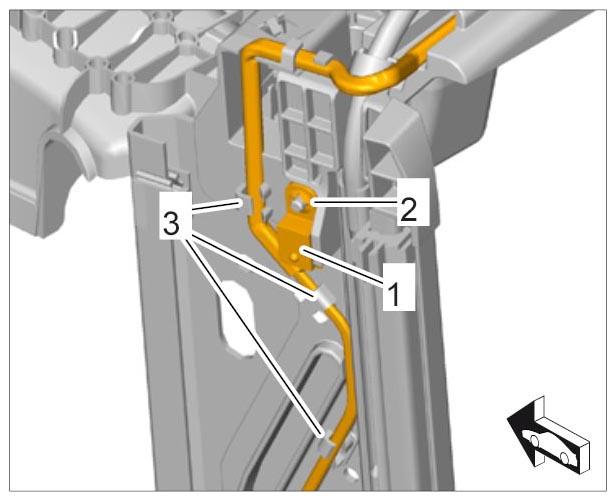

    Fig 3: Installing Upper Microswitch
    G09994539Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Position upper microswitch -1-  on the guide pin and fit a new spring clamp -2-  using a suitable tool.
  8. Secure wire harness.

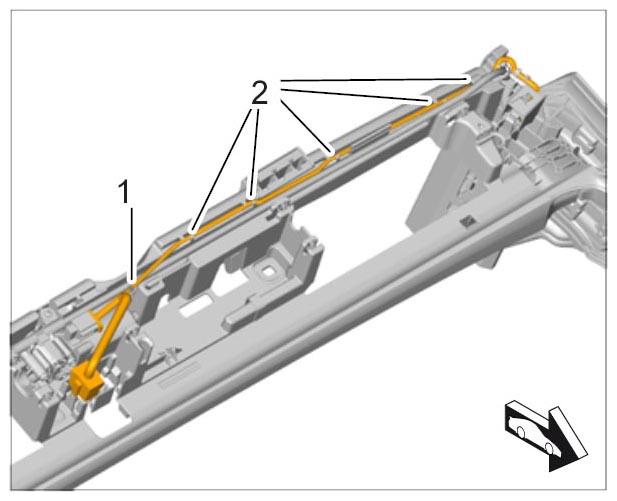

    Fig 4: Securing Wire Harness For Flaps
    G09994540Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 8.1. Clip wire harness into the brackets -2-  .
    2. 8.2. Secure wire harness with a tie-wrap -1-  .

      Information

      Before installing the flap motor, the rear side section flaps must be fully retracted (lower end position) to ensure synchronous operation.

  9. Press both rear side section flaps to their lower end position.
  10. Install flap motor.

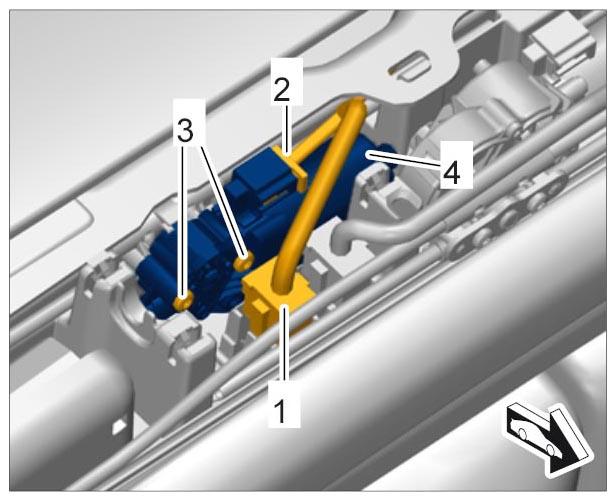

    Fig 5: Installing Flap Motor
    G09994541Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 10.1. Place flap motor -4-  on the guide pin.
    2. 10.2. Turn flap motor -4-  slightly until the pinion engages.
    3. 10.3. Tighten fastening screws -3-  . Tightening torque 5 Nm (3.5 ftlb.)
  11. Plug in electric plug connection -2-  on the flap motor -4-  until the connector engages securely.
  12. Plug in electric plug connection -1-  for wire harness for flaps until the connector engages securely.
