Installing Front Retaining Strip: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Centre the retaining strip in the screw-on points.

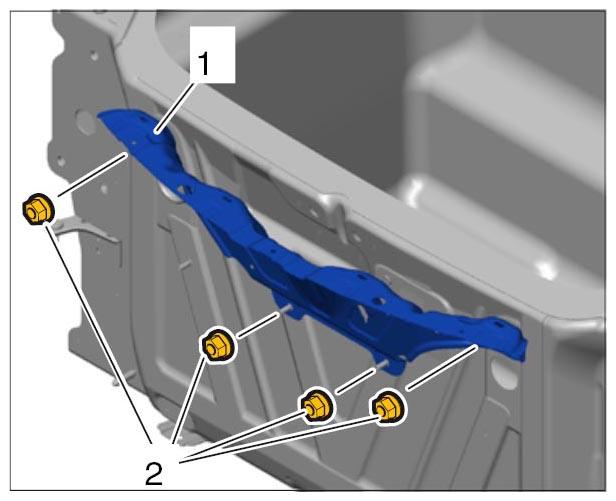

Fig 1: Identifying Front Retaining Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw on retaining strip at the front using fastening nuts -2- . Tightening Torque 10 Nm (7.5 ft. lbs.)

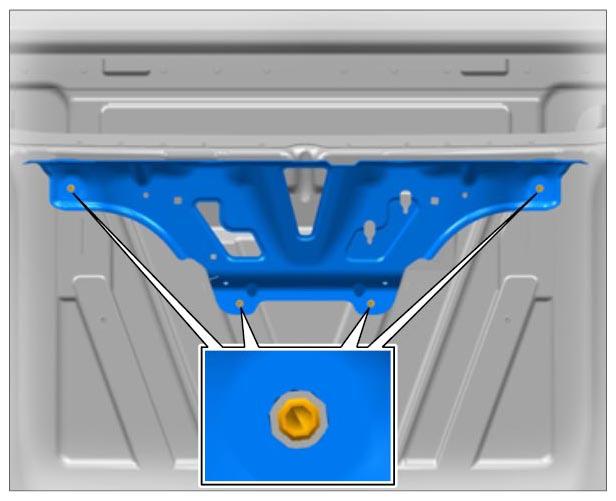

Fig 2: Installing Front Retaining Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
