Disassembling Front Apron

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip cover for towing lug.
    1. 1.1. Release the locking lug -arrow A-  .
    2. 1.2. Press out the cover -arrow B-  .
    3. 1.3. Unhook safety strap -arrow C-  .

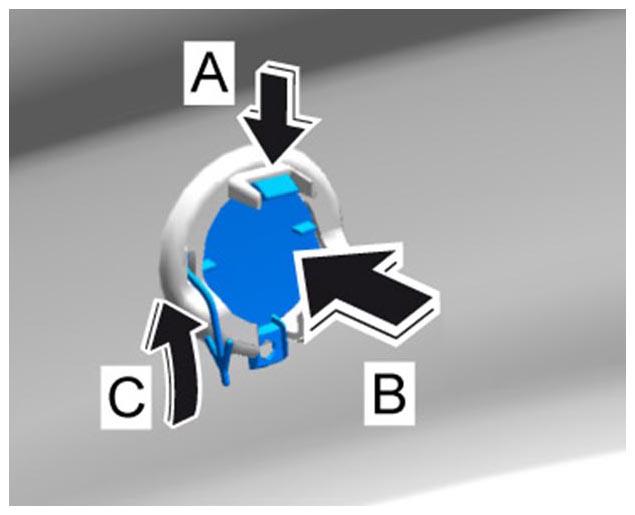

      4. Fig 1: Removing Towing Lug Cover
      G09994697Courtesy of PORSCHE CARS NORTH AMERICA, INC.
