Removing Flywheel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removing and installing flywheel

Leaks
Risk of damage to the flywheel and adjacent components

→ Be very careful during removal and installation.

→ Get another person to help because of the weight.

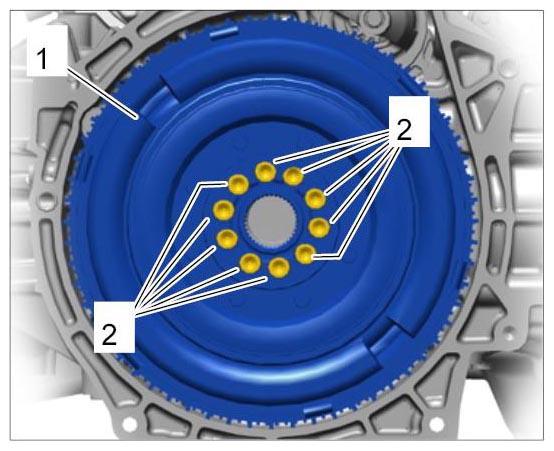

Installation position of flywheel for PDK transmission -1- with ten fastening screws -2- :

Fig 1: Identifying Flywheel Threaded Joint For Porsche Doppelkupplung (PDK)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

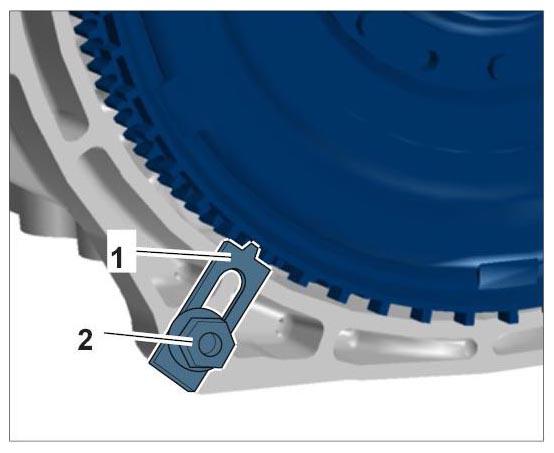

Counter-hold tool WE 1487 -1- must be screwed to the ring gear on the engine flange.
1. 1.1. To do this, secure the tool through the lower left bore in the flange using a screw and M10 nut -2- .

  Fig 2: Identifying Flywheel Counter-Hold Tool
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information
  - Check that the through-bores on the hub of the flywheel are flush with the screw heads.
  - Screw heads can damage the flywheel when unscrewing them if the bores are not flush.
  - A damaged flywheel must not be installed!

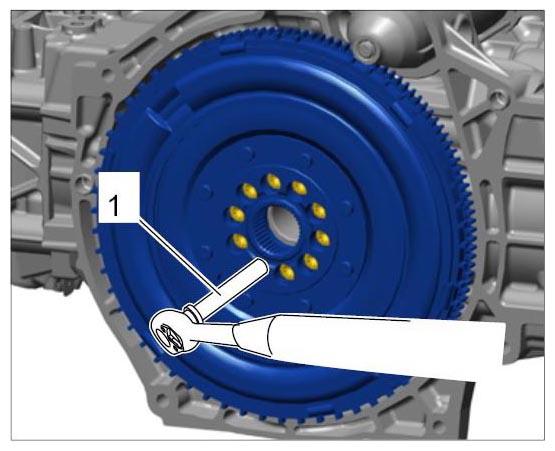

Loosen and unscrew ten screws (multiple-tooth, a/f 12, M10 x 29) on the flywheel. Carefully remove the flywheel (it is quite heavy - so be careful).
1. 2.1. The screws are micro-self-locking and must be replaced!
2. 2.2. Remove adhesive residues from the threaded bores and clean with brake cleaner.
  Allow a drying time of at least 10 minutes!
  1. Socket-wrench insert for internal serration screws, a/f 12
  Information
  - Check the diaphragm spring on the flywheel for mechanical damage before installing it.
  - A damaged flywheel must not be installed!

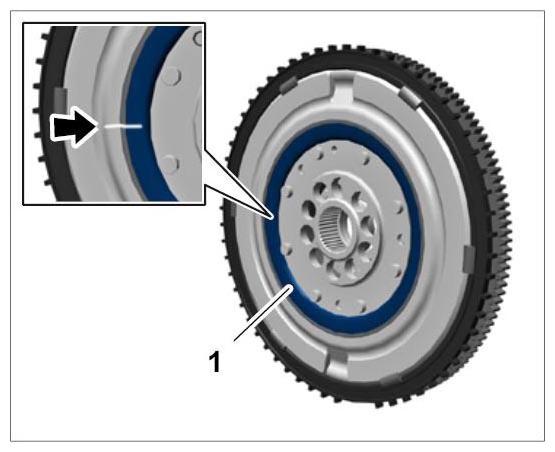

Check diaphragm spring -1- on the flywheel for damage.
There must be no dents or damage!
1. 3.1. The flywheel must be replaced if the diaphragm spring is damaged -arrow- .

  Fig 4: Locating Flywheel Diaphragm Spring
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
