Installing Actuator For Electric Parking Brake (EPB)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install actuator in trim panel under the dashboard.

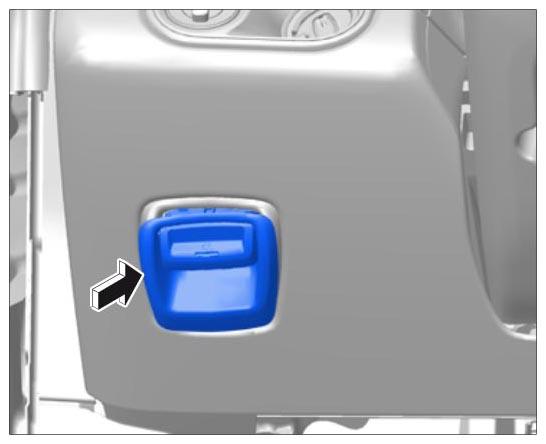

Fig 1: Installing Actuator For EPB
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Insert actuator in trim panel under the dashboard and clip it in -arrow- .
2. 1.2. Check that the actuator is seated securely, clip it in again if necessary and bend up the retaining clips slightly.
