Installing Transmission

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the transmission on a transmission jack and secure with a retaining strap.
  2. Grease the input shaft -arrow-  on the transmission.

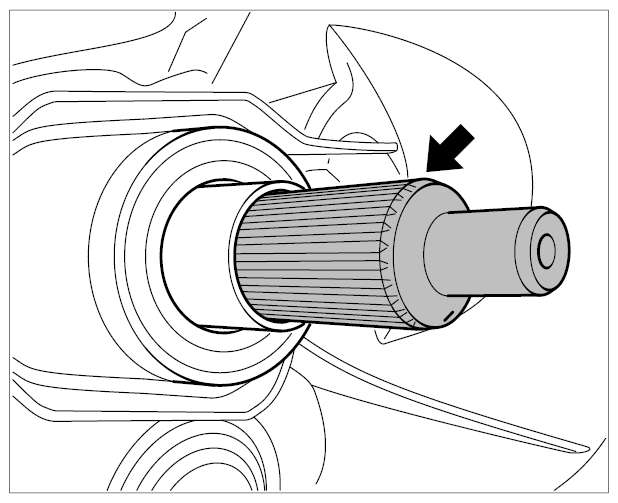

    Fig 1: Locating Input Shaft On Transmission
    G09806732Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Guide the transmission into the transmission tunnel.
  4. Slide rubber sleeve on the operating cable through the support and engage the ends of the cable -1-  on the transmission.
    Fig 2: Connecting Operating Cable To Transmission
    G09806733Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Insert safety clips -2-  on the support.

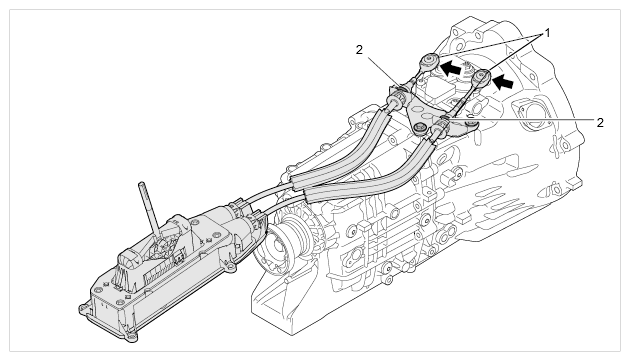

    Fig 3: Inserting Safety Clips On Support
    G09806734Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Fit transmission with a spacer plate and mount it on the engine by turning the output shaft.

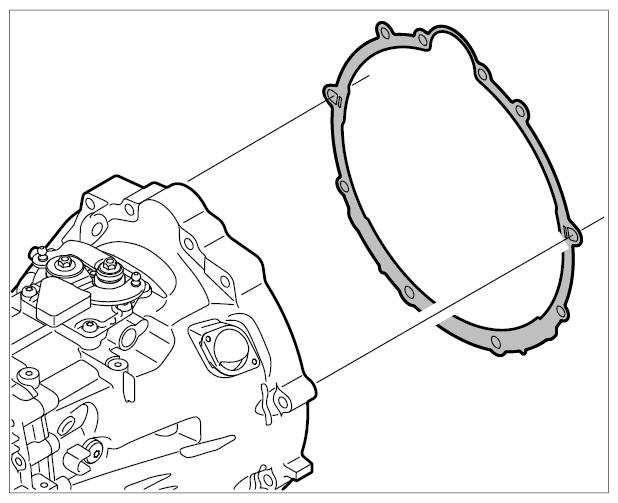

    Fig 4: Identifying Spacer Plate
    G09806735Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Screw in new fastening screws for securing transmission to engine. When doing so, make sure to install the exhaust system holders at the left and right. → Initial tightening: 38 Nm (28 ftlb.) → Final tightening: 90°
  8. Screw in fastening screws for securing transmission support to body -1-  . → Tightening torque: 65 Nm (48 ftlb.)

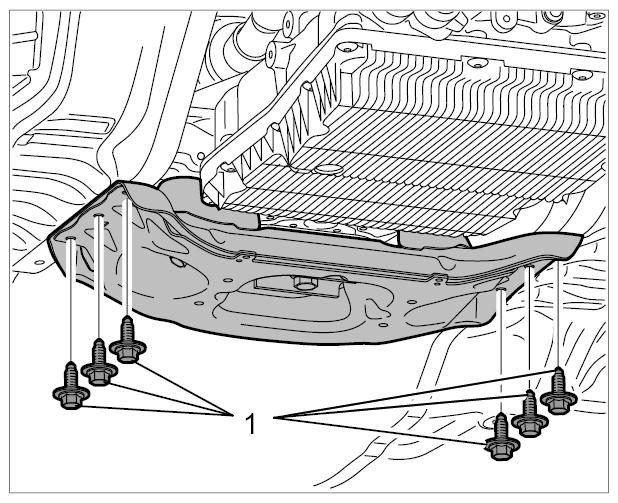

    Fig 5: Identifying Fastening Screws Of Transmission Support
    G09806736Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Fit chassis brace. For details of torques, see → WM 4X00IN TIGHTENING TORQUES FOR FRONT AXLE

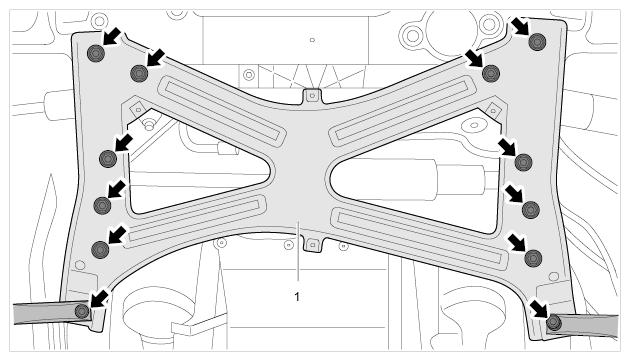

    Fig 6: Identifying Fastening Screws On Cross Panel
    G09806737Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Install slave cylinder.
  11. Push on cable plug on sensor. Secure line to holder.

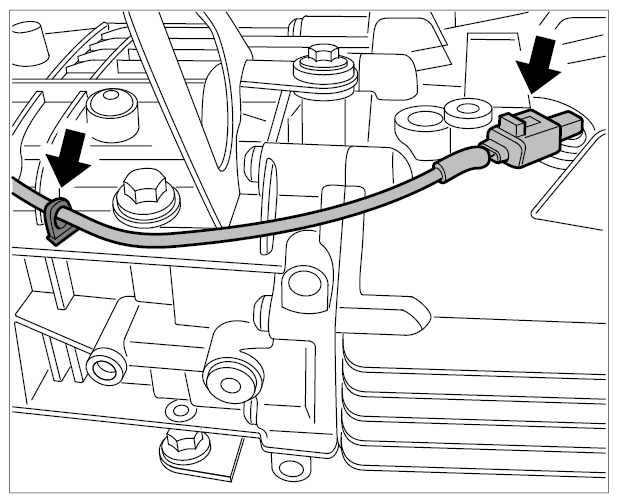

    Fig 7: Locating Transmission Sensor
    G09806738Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Connect cable plug -arrow-  for reverse gear on the transmission.

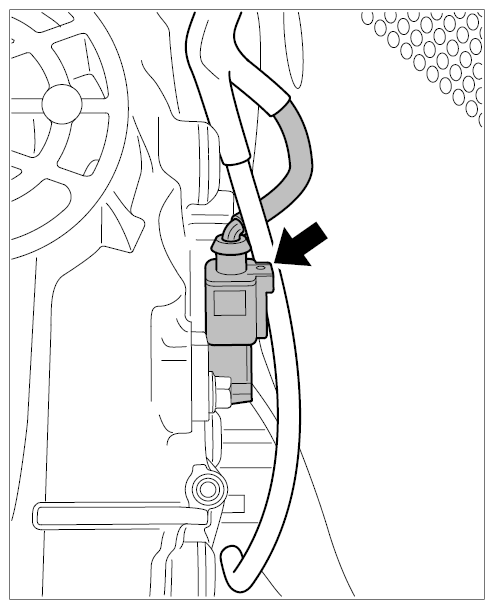

    Fig 8: Locating Transmission Connector
    G09806739Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  13. Install exhaust system holder -2-  at the right of the transmission.

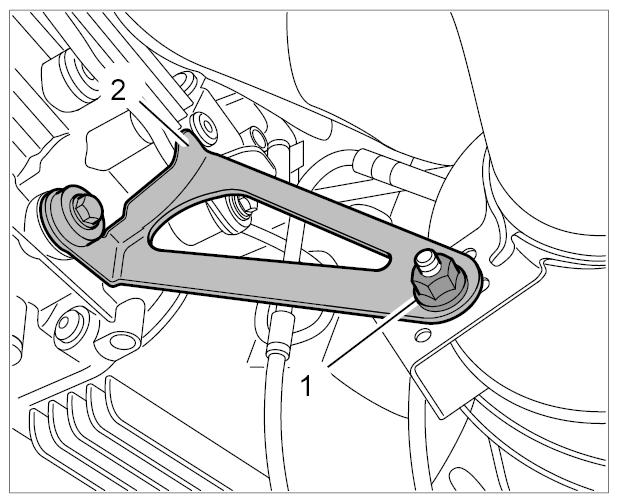

    Fig 9: Identifying Exhaust System Holder
    G09806740Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  14. Secure the right exhaust system holder -2-  on the primary catalytic converter. To do this, screw in the screw -1-  .

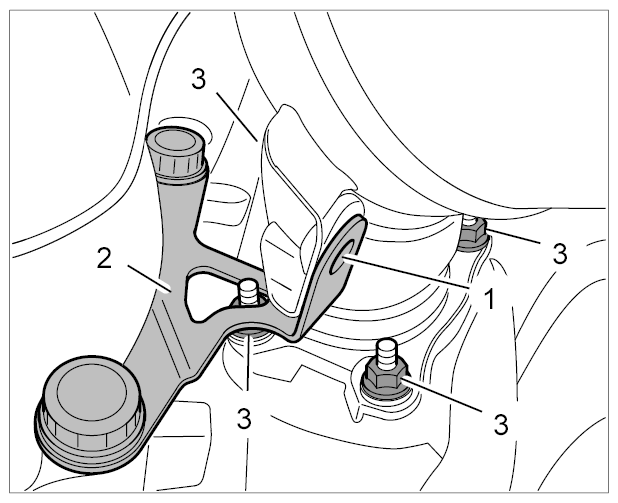

    Fig 10: Securing Right Exhaust System Holder
    G09806741Courtesy of PORSCHE CARS NORTH AMERICA, INC.
