Installing Footwell Light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

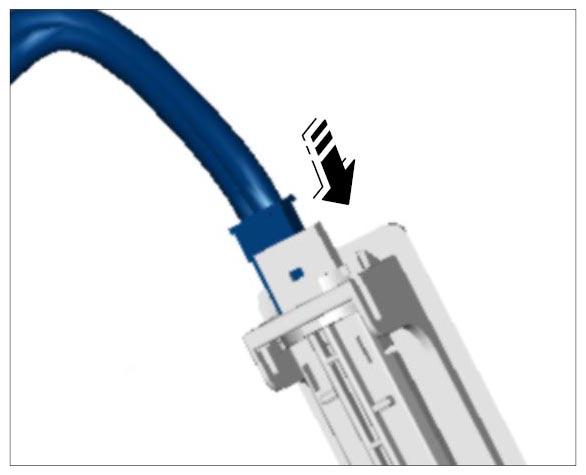

Plug in electric plug connection.

Fig 1: Connecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

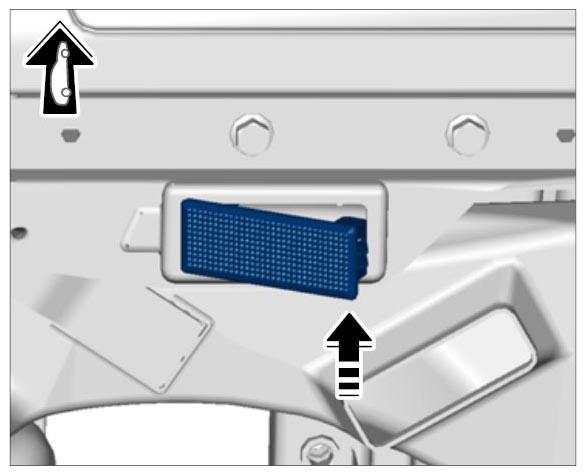

Fit the footwell light and clip it in.

Fig 2: Clipping Footwell Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
