Removing Brake Pedal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove pedal shaft -2-  .
    1. 1.1. Remove securing clip -1-  on the brake pedal shaft -2-  .
    2. 1.2. Pull pedal shaft -2-  out to the left by moving the pedal back and forward slightly -arrow-  .

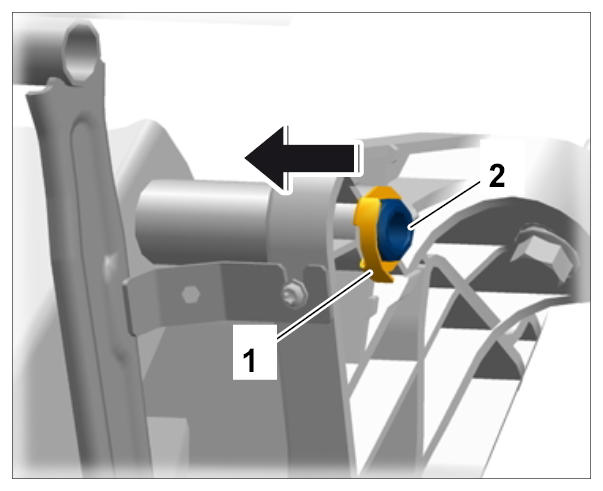

    Fig 1: Removing Pedal Shaft
    G09807953Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully turn the pedal to the left and remove it by pulling it downwards.
