Replacing Rear Transverse Lock Support

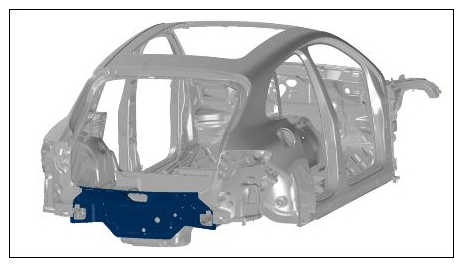

Fig 1: Rear Transverse Lock Support Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of rear transverse lock support

Information:  Drill out the connection point on one side only. Do not damage the plate underneath.

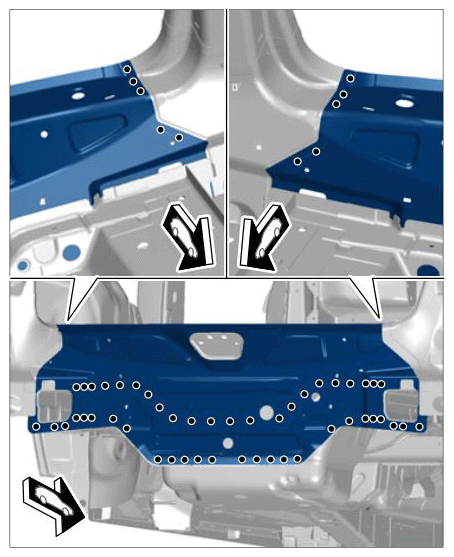

1. Drill out spotwelds using spotweld drill  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing rear transverse lock support

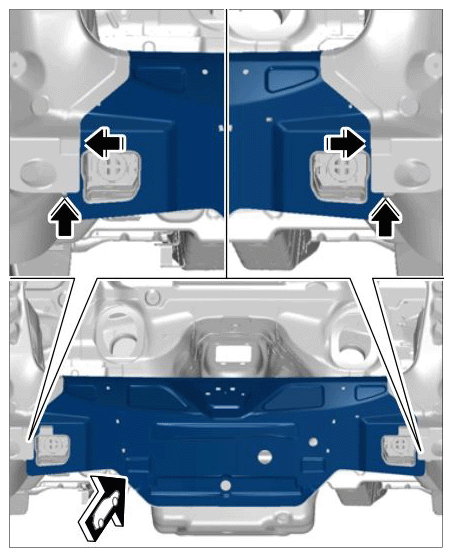

2. Make a sufficient gap between the corner plates at the left and right and the transverse lock support -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing rear transverse lock support

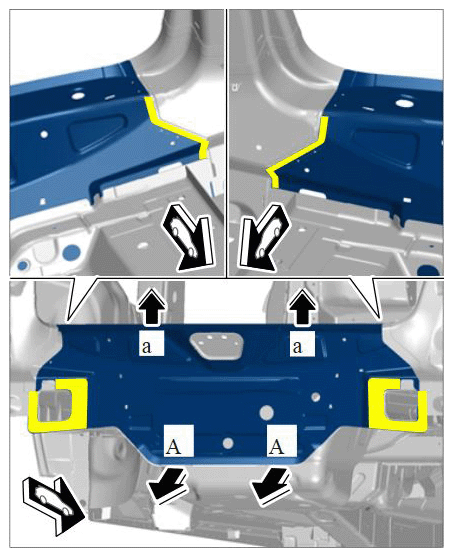

3. Heat the marked bonding surfaces.
   1. 3.1. Pull closing panel to the rear in the lower area -arrows A-  and then remove it by pulling it upwards -arrows a-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing rear transverse lock support
