Technical values - front seat
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

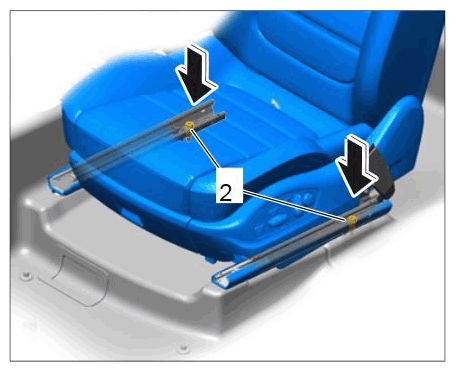

| Fastening screws for front seat rail | Tightening torque | 50 Nm (37 ftlb.) | +/-7.5 Nm (+/-5.5 ftlb.) | ||
|
Tightening fastening screws on front seat rail |
|||||

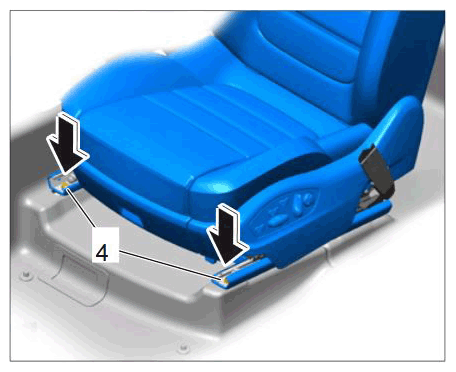

| Fastening screws for rear seat rail | Tightening torque | 50 Nm (37 ftlb.) | +/-7.5 Nm (+/-5.5 ftlb.) | ||
|
Securing front seat to seat frame at the rear |
|||||

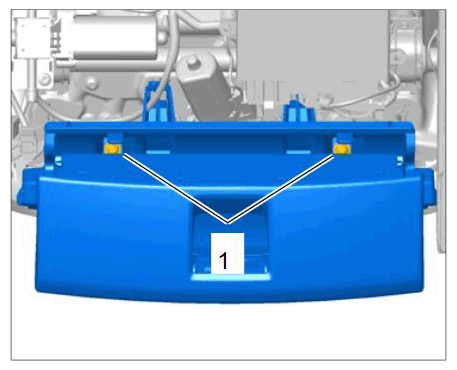

| Fastening screw for storage compartment on seat | Item 1 | Tightening torque | 7.5 Nm (5.5 ftlb.) | +/-0.5 Nm (+/-0.5 ftlb.) | |
|
Loosening storage compartment |
|||||

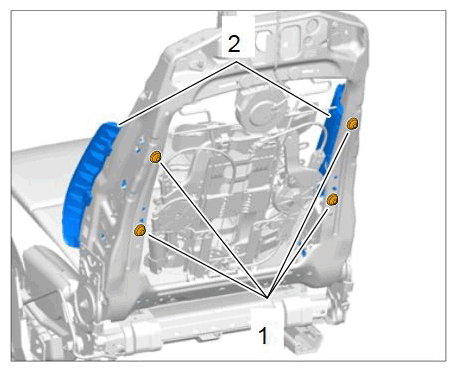

| Fastening screw securing holder for air cushion on backrest | Item 1 | Tightening torque | 2.5 Nm (2 ftlb.) | +/-0.3 Nm (+/-0.2 ftlb.) | |
|
Removing air cushion for backrest |
|||||

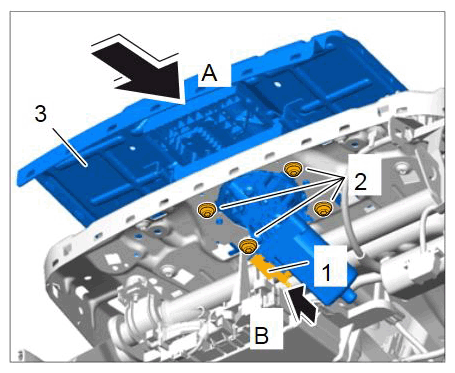

| Fastening screw securing seat-surface extension to seat | Item 2 | Tightening torque | 7.5 Nm (5.5 ftlb.) | +/-0.5 Nm (+/-0.5 ftlb.) | |
|
Installing seat-surface extension |
|||||

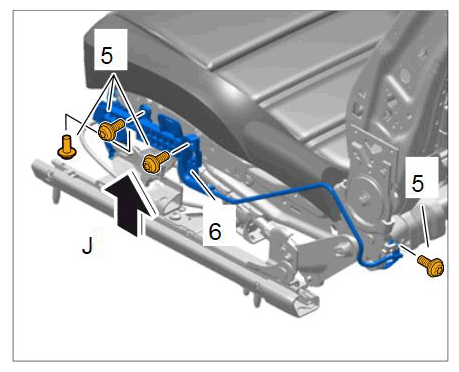

| Fastening screw securing side bracket to seat | Item 5 | Tightening torque | 7.5 Nm (5.5 ftlb.) | +/-0.5 Nm (+/-0.5 ftlb.) | |
|
Securing bracket at the sides |
|||||

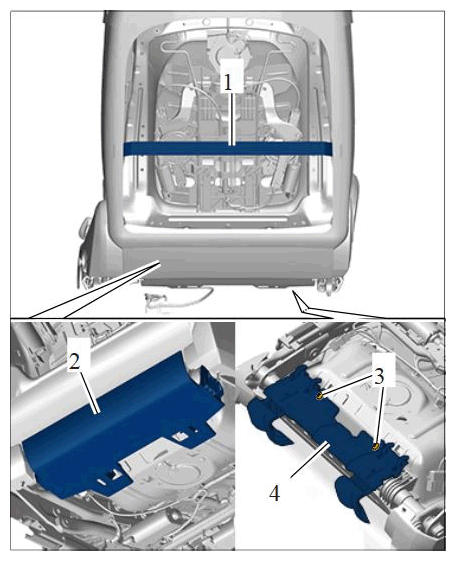

| ISOFIX fastening screw | Item 3 | Tightening torque | 7.5 Nm (5.5 ftlb.) | +/-0.5 Nm (+/-0.5 ftlb.) | |
|
Loosening restraining strap |
|||||

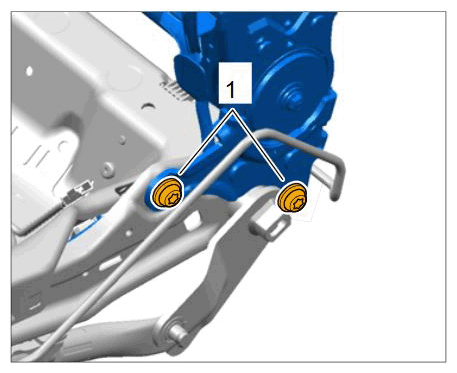

| Fastening screws securing backrest frame to seat frame | Item 1 | Tightening torque | 33 Nm (24 ftlb.) | +/-3 Nm (+/-2 ftlb.) | |
|
Removing backrest frame |
|||||
