Technical Values

Location	Description	Type	Basic value	Tolerance 1
Front trim panel to body	Tapping screw	Tightening torque	2 Nm (1.5 ftlb.)

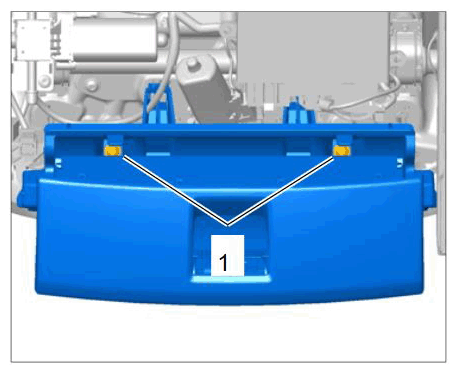

Cover for rear lock support to body	Fastening nut	Tightening torque	2.5 Nm (2 ftlb.)
Fastening screws for trim panel under dashboard		Tightening torque	3 Nm (2 ftlb.)
Fastening screws for trim panel under dashboard		Tightening torque	4.5 Nm (3 ftlb.)

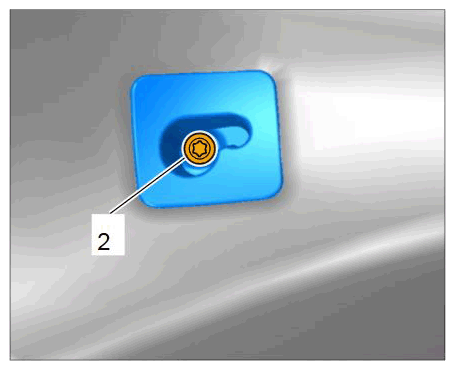

Fastening screw for lashing point		Tightening torque	8 Nm (6 ftlb.)

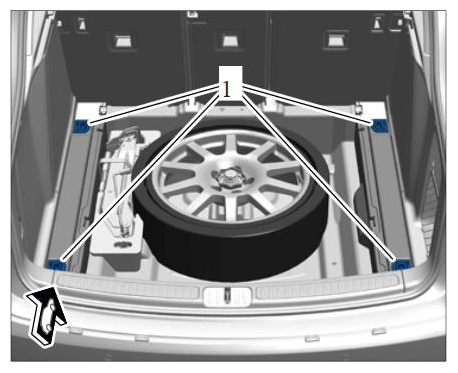

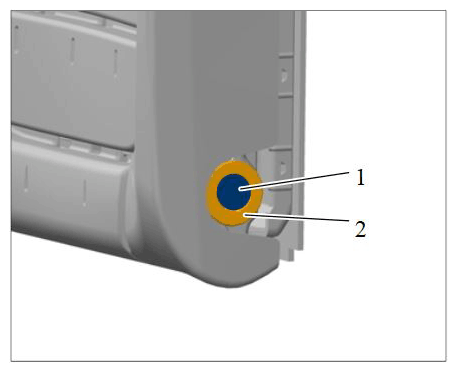

Lashing points
Armrest to door panel	Internal Torx screw, Ø 5 x 14	Tightening torque	2.3 Nm (1.5 ftlb.)
Upper air guide to dashboard bracket		Tightening torque	3 Nm (2 ftlb.)
Lower air guide to dashboard bracket		Tightening torque	1.5 Nm (1 ftlb.)
Dashboard to lower bracket		Tightening torque	3 Nm (2 ftlb.)
Dashboard to upper bracket		Tightening torque	3 Nm (2 ftlb.)

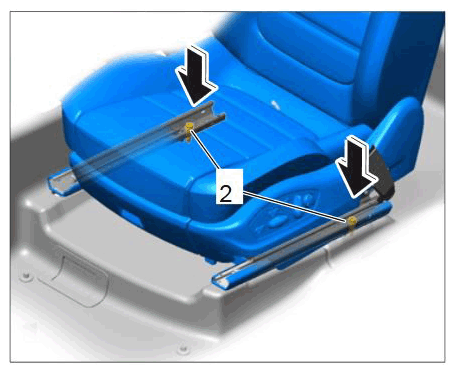

Fastening screws for front seat rail		Tightening torque	50 Nm (37 ftlb.)	+/-7.5 Nm (+/-5.5 ftlb.)
Tightening fastening screws on front seat rail

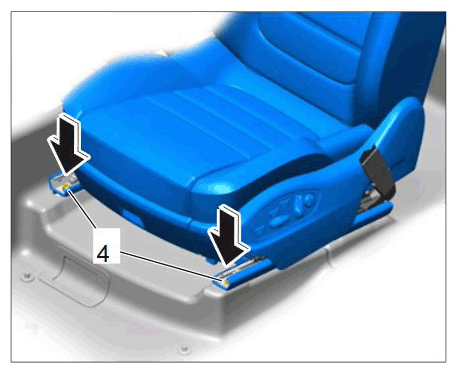

Fastening screws for rear seat rail		Tightening torque	50 Nm (37 ftlb.)	+/-7.5 Nm (+/-5.5 ftlb.)

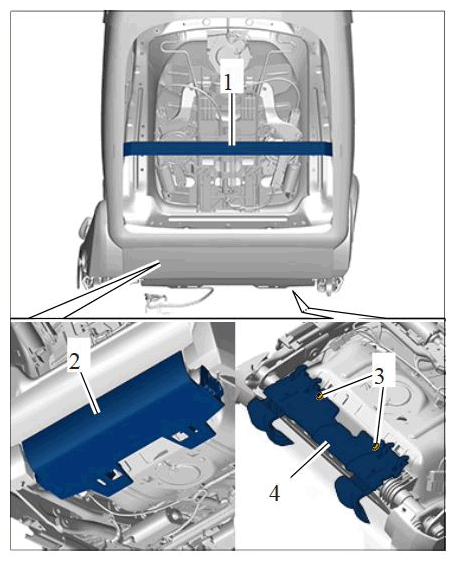

Securing front seat to seat frame at the rear

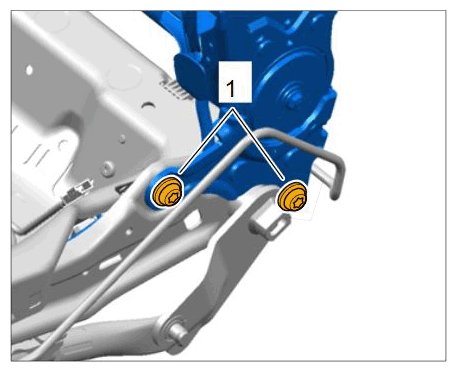

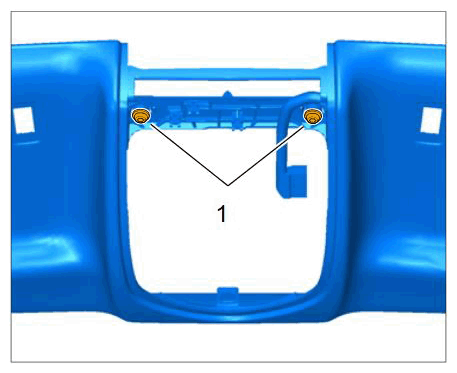

Fastening screw for storage compartment on seat	Item 1	Tightening torque	7.5 Nm (5.5 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Loosening storage compartment

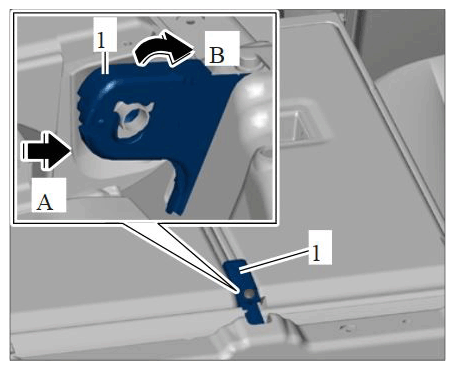

Fastening screw securing holder for air cushion on backrest	Item 1	Tightening torque	2.5 Nm (2 ftlb.)	+/-0.3 Nm (+/-0.2 ftlb.)
Removing air cushion for backrest

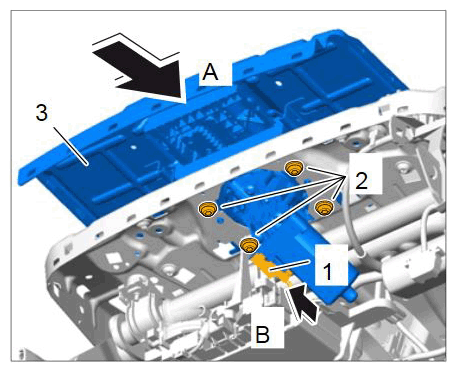

Fastening screw securing seat-surface extension to seat	Item 2	Tightening torque	7.5 Nm (5.5 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Installing seat-surface extension

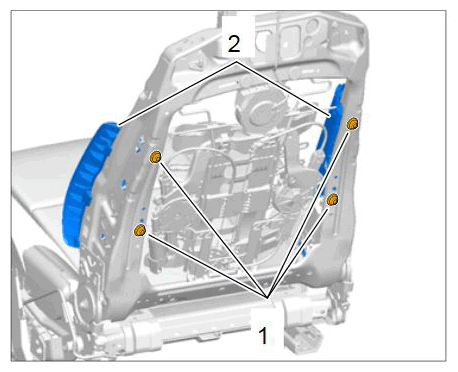

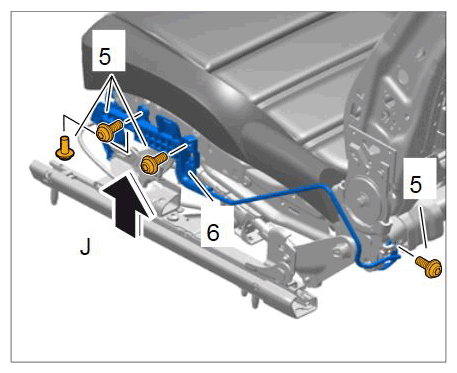

Fastening screw securing side bracket to seat	Item 5	Tightening torque	7.5 Nm (5.5 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Securing bracket at the sides
ISOFIX fastening screw	Item 3	Tightening torque	7.5 Nm (5.5 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Loosening restraining strap
Fastening screws securing backrest frame to seat frame	Item 1	Tightening torque	33 Nm (24 ftlb.)	+/-3 Nm (+/-2 ftlb.)
Removing backrest frame
Fastening screws for supporting bow		Tightening torque	12 Nm (9 ftlb.)
Securing supporting bow
Fastening screw for inner backrest mount (on body side)		Tightening torque	20 Nm (15 ftlb.)
Removing inner mount for rear backrest
Fastening screw for outer backrest mount (on body side)		Tightening torque	20 Nm (15 ftlb.)
Removing outer mount for backrest

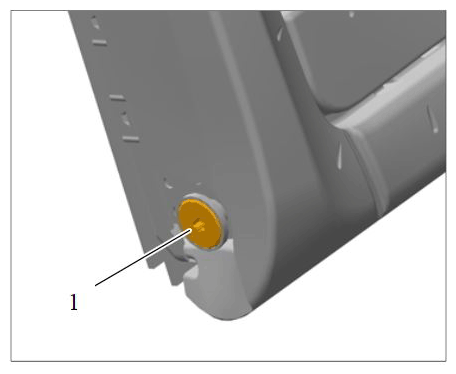

Mount for load-through provision (on backrest side)	Item 1	Tightening torque	39 Nm (29 ftlb.)
Removing load-through provision mount

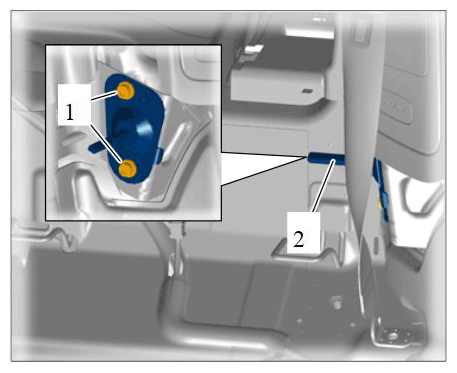

Inner mount for rear backrest (on backrest side)	Item 2	Tightening torque	39 Nm (29 ftlb.)
Removing inner mount for rear backrest

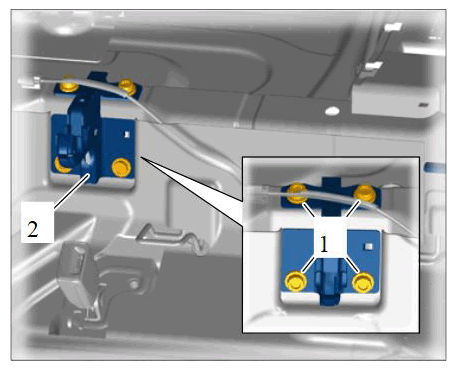

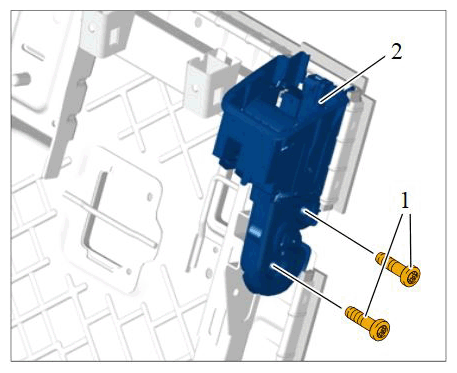

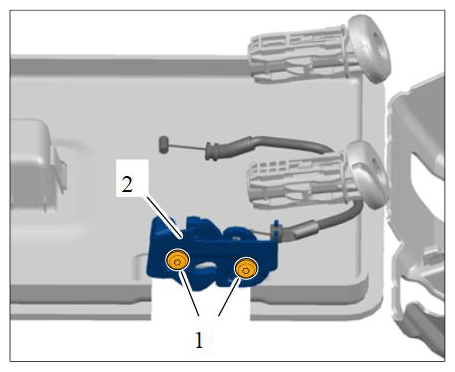

Fastening screws for rear backrest lock	Item 1	Tightening torque	26 Nm (19 ftlb.)
Removing backrest lock
Fastening screw for rear backrest lock, center	Item 1	Tightening torque	26 Nm (19 ftlb.)
Removing backrest lock

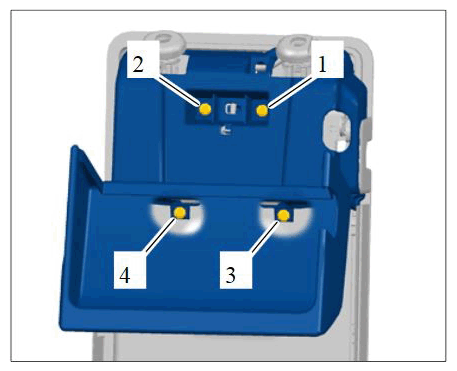

Fastening screws for upper trim panel on load-through provision	Item 1 to 4	Tightening torque	3.5 Nm (2.5 ftlb.)
Installing upper trim panel on load-through provision

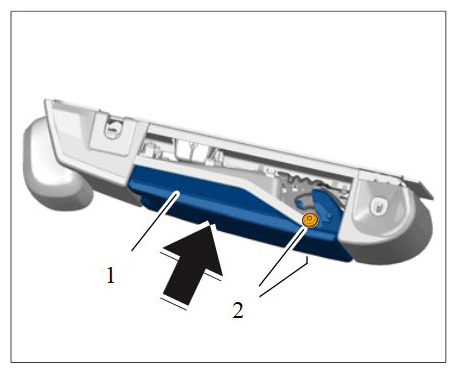

Fastening screw for armrest on load-through provision	Item 2	Tightening torque	4.5 Nm (3 ftlb.)
Installing armrest with cover

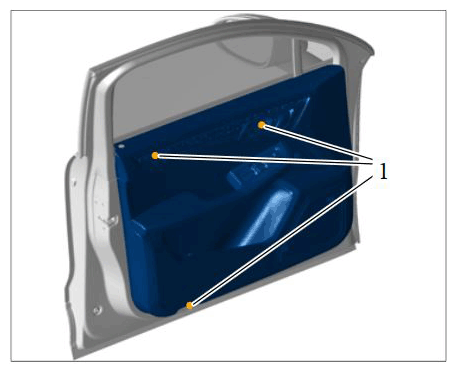

Fastening screw for door panel		Tightening torque	3.5 Nm (2.5 ftlb.)	+/-0.5 Nm (+/-0.5 ftlb.)
Door panel mounting
A-pillar trim panel to body		Tightening torque	5.6 Nm (4 ftlb.)
Fastening screw for lower roof console		Tightening torque	5 Nm (3.5 ftlb.)
Screws securing roof console to headliner
Fastening screw for luggage net cover holder		Tightening torque	9 Nm (6.5 ftlb.)
Screws securing holder for rear luggage net cover
