Technical Values -70- Dashboard

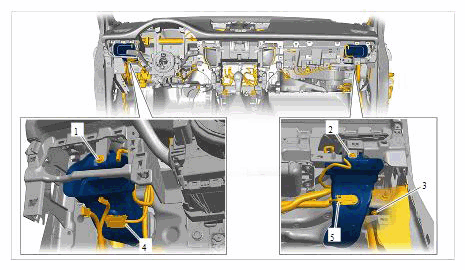

Side air guides

1, 2 -  Screw → Tightening torque: 3 Nm (2 ftlb.)

3 -  Screw → Tightening torque: 1.5 Nm (1 ftlb.)

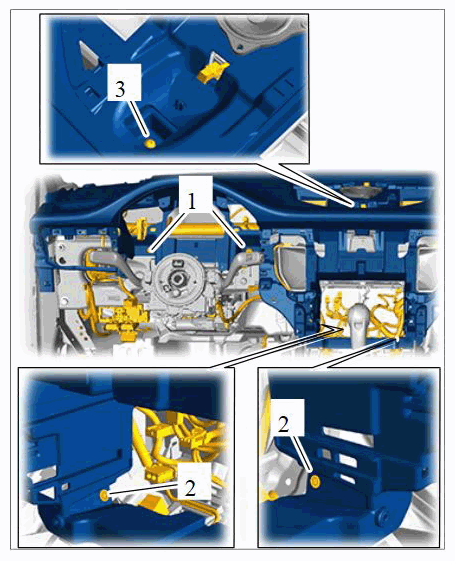

Passenger's airbag, side mounting

3 -  Screw → Tightening torque: 3 Nm (2 ftlb.)

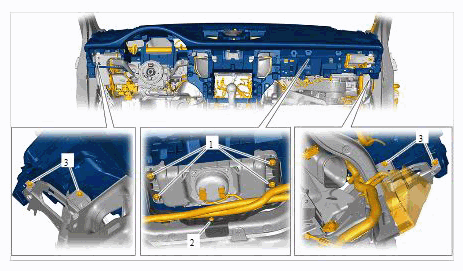

Front mounting

1, 2, 3 -  Screw → Tightening torque: 3 Nm (2 ftlb.)
