Technical Values -69- Pedestrian Protection

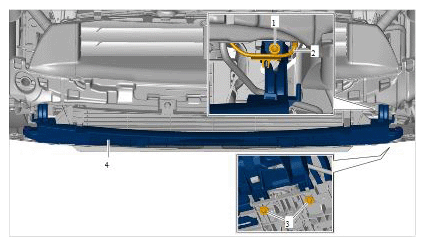

G11984379

Pedestrian protection

1  - Screw → Tightening torque: 4.5 Nm (3.5 ftlb.)

3  - Screw → Tightening torque: 3 Nm (2 ftlb.)
