Technical Values -63- Rear Apron

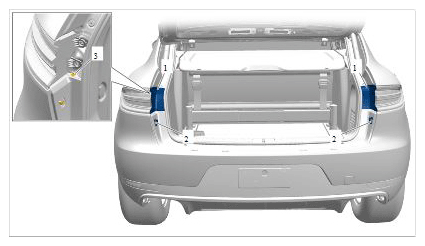

Mounting for rear apron, top

1. 3  - Screw → Tightening torque: 2 Nm (1.5 ftlb.)

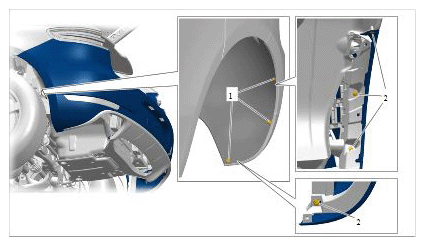

Mounting for rear apron at wheel housing

1. Screw → Tightening torque: 2 Nm (1.5 ftlb.)
2. Screw → Tightening torque: 10 Nm (7.5 ftlb.)

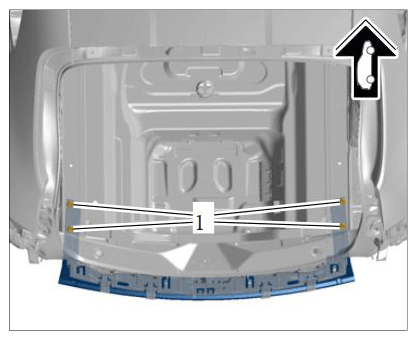

Mounting for rear apron, bottom

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Fastening screws securing bumper to body	Item 1	Tightening torque	40 Nm (30 ftlb.)
