Technical Values -63- Front Apron

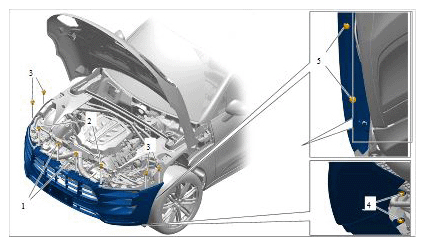

Mounting point for front apron

1. Screw → Tightening torque: 8 Nm (6 ftlb.)
2. Screw → Tightening torque: 8 Nm (6 ftlb.)
3. Screw → Tightening torque: 2 Nm (1.5 ftlb.)
4. Screw → Tightening torque: 2 Nm (1.5 ftlb.)
5. Screw → Tightening torque: 2 Nm (1.5 ftlb.)
