Technical Values - Rear Seat Belt System
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

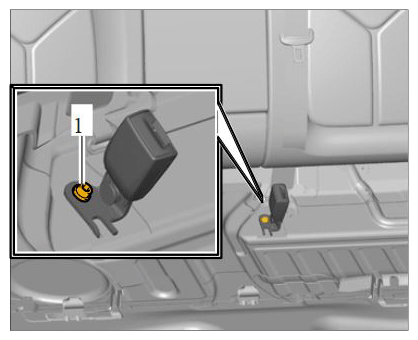

| Fastening screw for rear belt lock | Tightening torque | 50 Nm (37 ftlb.) | |||
|
Loosening seat-belt buckle |
|||||

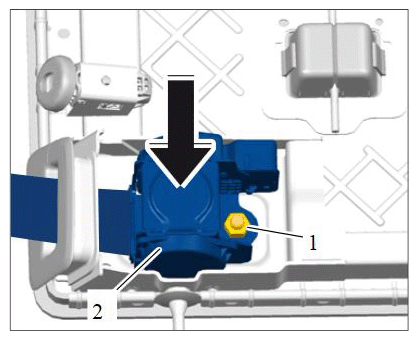

| Fastening screw securing seat-belt pretensioner to bodyshell | Item 3 | Tightening torque | 50 Nm (37 ftlb.) | ||
|
Installing seat-belt pretensioner |
|||||

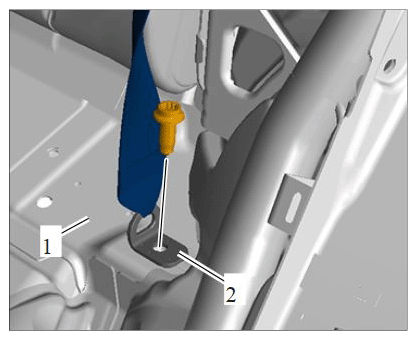

| Fastening screw securing seat belt mount to bodyshell | Tightening torque | 50 Nm (37 ftlb.) | |||
|
Securing seat belt mount |
|||||

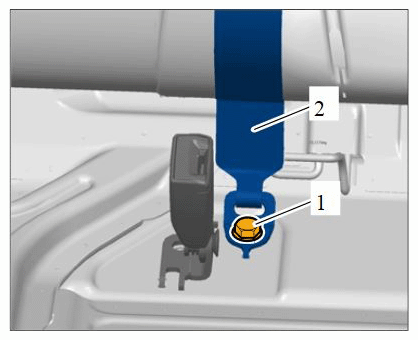

| Fastening screw securing centre rear seat belt mount to body | Item 1 | Tightening torque | 50 Nm (37 ftlb.) | ||
|
Loosening centre seat belt mount from body |
|||||
| Fastening nut for centre rear seat-belt pretensioner | Item 1 | Tightening torque | 50 Nm (37 ftlb.) | ||
|
Installing seat-belt pretensioner |
|||||
